The AD581TH is an industry-standard voltage reference component manufactured by Analog Devices Inc., known for its high precision and reliability. This high-performance monolithic IC offers a fixed 10V output with an impressive accuracy level. It is specifically designed to cater to applications requiring a stable voltage reference under varying operating conditions.

Key Features

• Output Voltage: Provides a stable 10V output, making it suitable for various applications where precision is critical.
• Temperature Coefficient: Features a low temperature coefficient, ensuring the output voltage remains stable across a wide temperature range.
• Long-Term Stability: Exhibits excellent long-term stability, which is essential for maintaining accuracy over time.
• Low Noise: The AD581TH is engineered to have low noise, contributing to its high precision in sensitive electronic circuits.
• High Load-Driving Capability: Capable of driving high loads, this voltage reference can handle up to 10mA of sink and source current.

Applications

The AD581TH is versatile and can be employed in a wide array of applications, including:

• Digital voltmeters
• Precision power supplies
• Analog-to-digital converters (ADCs)
• Digital-to-analog converters (DACs)
• Industrial instrumentation

Product Specifications

Parameter Value Output Voltage (Nominal) 10V Initial Accuracy ±0.05% Temperature Coefficient (Typical) 10ppm/°C Load Regulation 5mV for 0 to 10mA change Operating Temperature Range -55°C to +125°C

Quality and Reliability

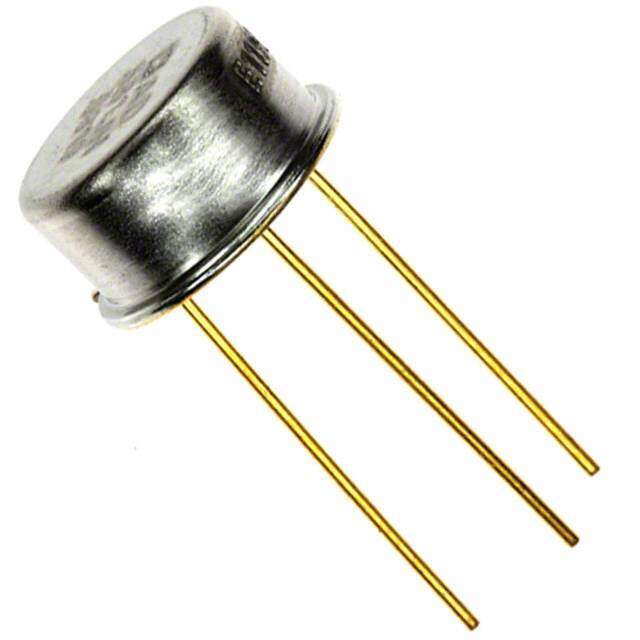

The AD581TH is constructed with Analog Devices' commitment to quality and reliability. It is available in a hermetically sealed three-terminal TO-5 package, which provides excellent environmental and physical protection, ensuring stable performance in diverse conditions.
