The AD581SH is a high-precision voltage reference component manufactured by Analog Devices Inc., a leader in the semiconductor industry. This integrated circuit is designed to offer a stable and precise reference voltage, which is crucial for the accurate operation of analog-to-digital converters, digital-to-analog converters, and other sensitive electronic circuits.

Key Features:

• Output Voltage: The AD581SH provides a fixed and precise 10V output, which serves as a reference voltage for various electronic applications.
• High Accuracy: It boasts an impressive initial accuracy of ±0.05%, ensuring that the output remains consistent and reliable for precision applications.
• Low Temperature Coefficient: With a temperature coefficient of 10ppm/°C maximum over the full military temperature range, the device guarantees stable performance across a wide range of environmental conditions.
• Low Drop-out Voltage: The device operates effectively with a minimal difference between the input and output voltage, enhancing its efficiency in systems with limited headroom.
• Long-Term Stability: The AD581SH exhibits excellent long-term stability, which is vital for maintaining consistent performance over extended periods.
• Wide Operating Range: It can operate over a wide range of input voltages, typically from 12V to 30V, providing flexibility in various power supply configurations.

Applications:

The AD581SH is ideal for use in high-end instrumentation, precision data acquisition systems, and any application where an accurate voltage reference is critical. It serves as a benchmark for system calibration, ensuring that measurements and control systems are accurate and consistent over time.

Quality and Reliability:

Analog Devices Inc. is renowned for its commitment to quality, and the AD581SH is no exception. It is rigorously tested to meet stringent quality standards, ensuring that each device performs to the highest specifications. The SH-grade denotes a high-reliability screening level, making it suitable for military and aerospace applications where component performance and durability are non-negotiable.

Package and Availability:

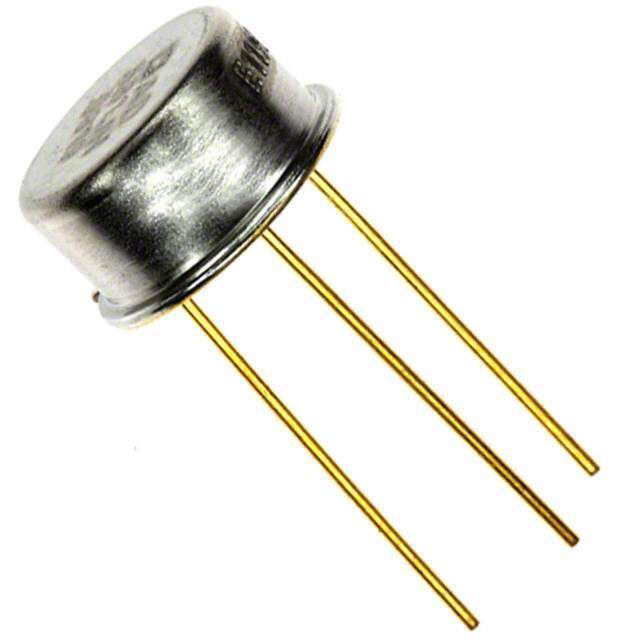

The AD581SH comes in a hermetically sealed three-terminal TO-5 package, designed to protect the internal circuitry from environmental factors. For pricing, availability, and detailed specifications, customers should contact Analog Devices Inc. or an authorized distributor.
