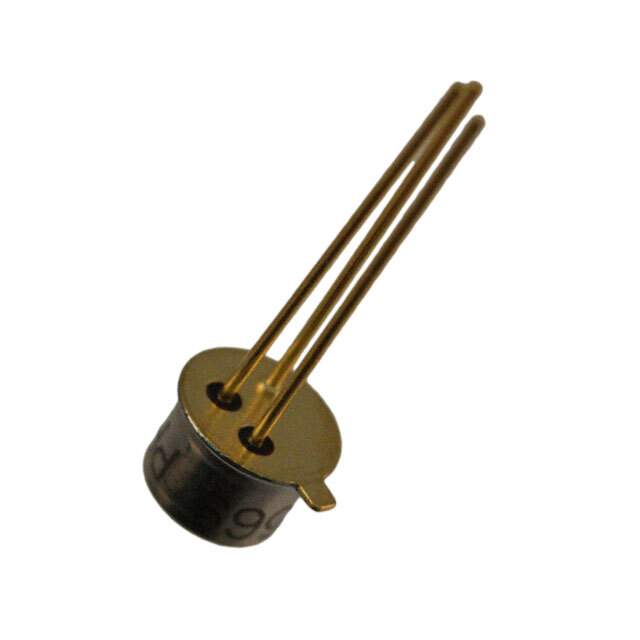

The AD580SH from Analog Devices Inc. is a high-precision, low-power, three-terminal voltage reference. This exceptional device offers a fixed output voltage of 2.5V, which has become a standard for many precision analog circuits. The AD580SH is designed to maintain accuracy and stability over a wide range of operating conditions, making it an ideal choice for high-performance applications.

Key Features:

• Output Voltage: Precisely regulated 2.5V ±0.3% initial accuracy.
• Temperature Coefficient: Exhibits a low temperature coefficient, typically 10ppm/°C, ensuring performance over a temperature range of -55°C to +125°C.
• Long-Term Stability: Offers excellent long-term stability and reliability over time, which is critical for demanding applications.
• Supply Range: Operates with a wide supply range from 4.5V to 30V, providing versatility in various circuit configurations.
• Load Regulation: Maintains a stable output under varying load conditions, with a typical load regulation of 10mV for a 10mA change in output current.
• Low Quiescent Current: The device features a low quiescent current, typically 1.5mA, making it suitable for battery-powered instruments.

Applications:

The AD580SH is widely used in precision data systems, analog-to-digital converters, digital voltmeters, and other high-accuracy measurement and control systems. Its robustness and reliability also make it suitable for industrial and military applications where stringent operating conditions are the norm.

Quality and Reliability:

Analog Devices Inc. is renowned for its commitment to quality, and the AD580SH is no exception. Each unit is rigorously tested to ensure it meets the high standards expected from a leading semiconductor manufacturer. The AD580SH is available in a hermetically sealed package, ensuring its performance in harsh environments and providing a reliable solution for critical applications.

For detailed specifications, technical documents, and application support, visit the Analog Devices Inc. website or contact their customer support team.
