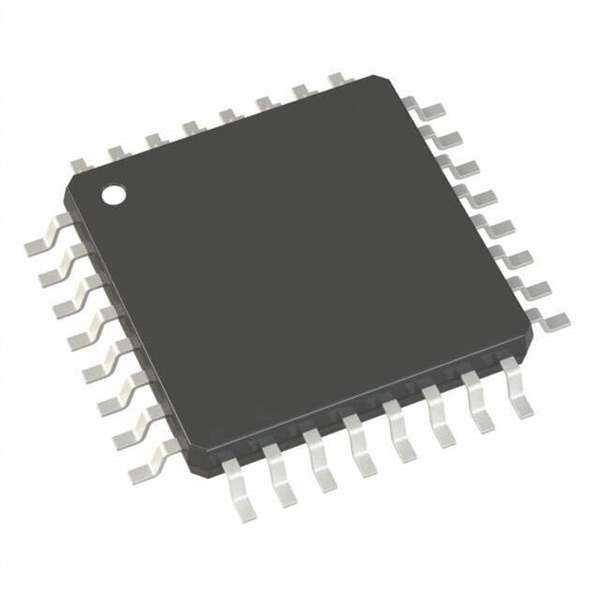

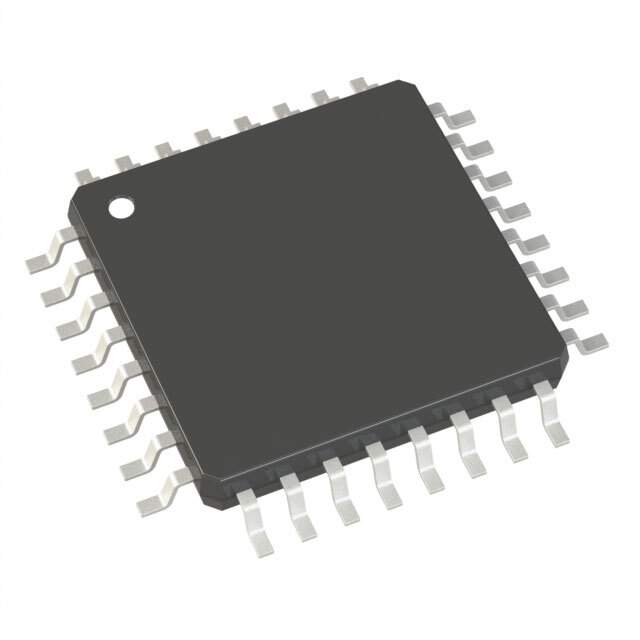

AD5764ASUZ - A High-Precision Quad DAC from Analog Devices Inc.

The AD5764ASUZ is a state-of-the-art quad, 16-bit, serial input, bipolar voltage output digital-to-analog converter (DAC) designed by Analog Devices Inc. This product offers an optimal combination of high performance and flexibility, making it an ideal choice for a wide range of applications including industrial control systems, automated test equipment, and precision instrumentation.

Key Features of the AD5764ASUZ

• High Resolution: With its 16-bit resolution, the AD5764ASUZ ensures high precision in converting digital values to analog voltages, providing fine control over output signals.
• Quad Channel Output: This DAC features four independent voltage output channels, each capable of converting a digital code to a corresponding analog output voltage.
• Bipolar Voltage Outputs: The device supports bipolar output voltage ranges, which can be programmed via software or pin-strapped for different ranges, offering versatility for various application needs.
• Flexible Serial Interface: The AD5764ASUZ comes with a 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with a variety of microcontrollers and digital systems.
• On-Chip Output Amplifiers: Each channel has its own on-chip output amplifier that enables rail-to-rail output swing.
• Integrated Precision Reference: The DAC includes an on-chip precision voltage reference and reference buffer, which simplifies the design and reduces external component count.

Applications

The versatility of the AD5764ASUZ makes it suitable for multiple applications, including:

• Process Control
• Data Acquisition Systems
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources
• Waveform Generation

Product Specifications

The AD5764ASUZ operates over a wide temperature range and comes in a compact TSSOP package. It requires a dual power supply and offers a clear, asynchronous reset to zero-scale or midscale depending on the model. The product is designed with robustness in mind, featuring overtemperature protection and a power-on reset circuit that ensures the DAC output powers up at zero scale and remains there until a valid write to the device takes place.

For designers looking for a reliable and precise DAC solution, the AD5764ASUZ from Analog Devices Inc. provides a powerful combination of performance and ease-of-use for sophisticated analog output tasks.
