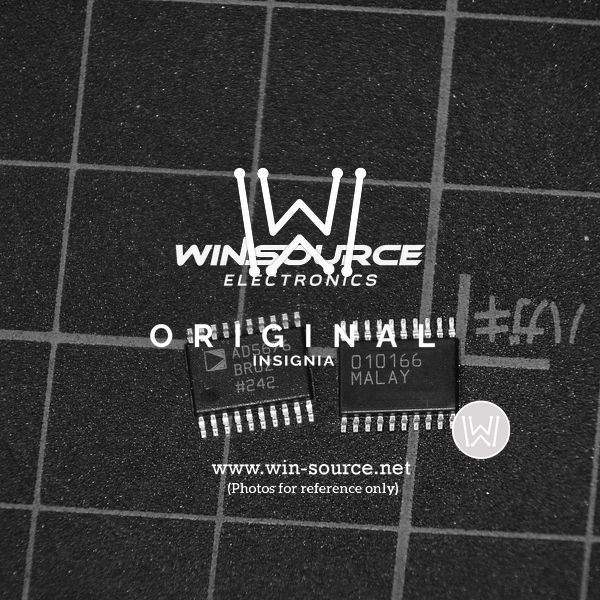

Product Overview: AD5676BRUZ

The AD5676BRUZ is a high-performance, 16-channel, 16-bit digital-to-analog converter (DAC) from the renowned manufacturer Analog Devices Inc. This precision DAC IC is designed to deliver exceptional accuracy and stability, making it a perfect fit for demanding applications that require a high degree of analog output precision.

Key Features

• Resolution: The AD5676BRUZ boasts a 16-bit resolution, providing fine-grain control over analog output.
• Channels: With 16 independent DAC channels, it enables complex multi-channel applications such as programmable logic controllers, distributed control systems, and industrial automation.
• Output Range: Users can configure the output range to suit their needs, with options including 0 V to 5 V, 0 V to 10 V, ±5 V, and ±10 V ranges.
• Interface: The device features a versatile 3-wire serial interface that is compatible with SPI, QSPI, MICROWIRE, and DSP interface standards, ensuring easy integration with a wide range of microcontrollers and digital systems.
• Power Supply: It operates from a single 2.7 V to 5.5 V supply, making it suitable for both 3.3 V and 5 V systems.
• Package: The AD5676BRUZ comes in a compact TSSOP (Thin Shrink Small Outline Package) form factor, which is ideal for space-constrained applications.

Applications

The AD5676BRUZ is versatile and can be deployed in various high-end industrial, communication, and medical applications, such as:

• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Digital Gain and Offset Adjustment
• Process Control and Servo Loops
• Programmable Voltage and Current Sources

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the AD5676BRUZ is no exception. It is designed to meet stringent industry standards, ensuring reliable performance in even the most challenging environments.

With its combination of high resolution, multiple channels, and flexible output ranges, the AD5676BRUZ is a powerful solution for designers looking to incorporate precise analog outputs into their systems.
