AD5643RBRMZ-3: A High-Precision DAC from Analog Devices Inc.

The AD5643RBRMZ-3 is a top-tier digital-to-analog converter (DAC) developed by Analog Devices Inc., a company renowned for its high-performance semiconductor products. This particular model is part of the nanoDAC series, which is designed to provide compact, high-accuracy, and low-power solutions for a wide array of applications.

The AD5643RBRMZ-3 features a dual 14-bit DAC, which ensures precise conversion of digital signals into their analog counterparts. This level of resolution is ideal for applications that demand a high degree of accuracy, such as industrial automation, process control, and medical equipment.

One of the standout features of this DAC is its on-chip precision output amplifier that allows rail-to-rail output swing. This capability is crucial for systems that require the full dynamic range of the DAC to be utilized, maximizing the efficiency of the analog signal processing.

The device operates from a single 2.7V to 5.5V supply, making it versatile for use in both 3V and 5V systems. Its low power consumption is an essential attribute, particularly for battery-powered devices where energy efficiency is paramount.

Moreover, the AD5643RBRMZ-3 comes with a power-down feature that further reduces the power consumption when the DAC is not in active use. This feature is especially useful in portable devices, helping to prolong battery life and reduce the overall power budget of the system.

For ease of integration, the AD5643RBRMZ-3 includes a 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards. This ensures that the DAC can be easily incorporated into a variety of digital systems without the need for complex interface circuitry.

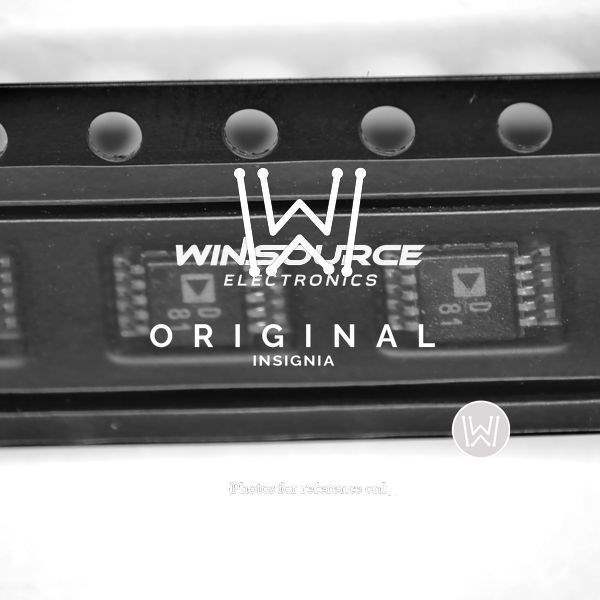

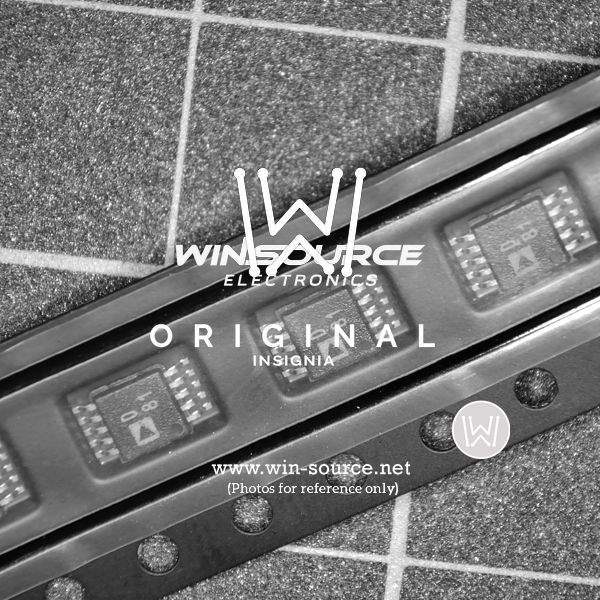

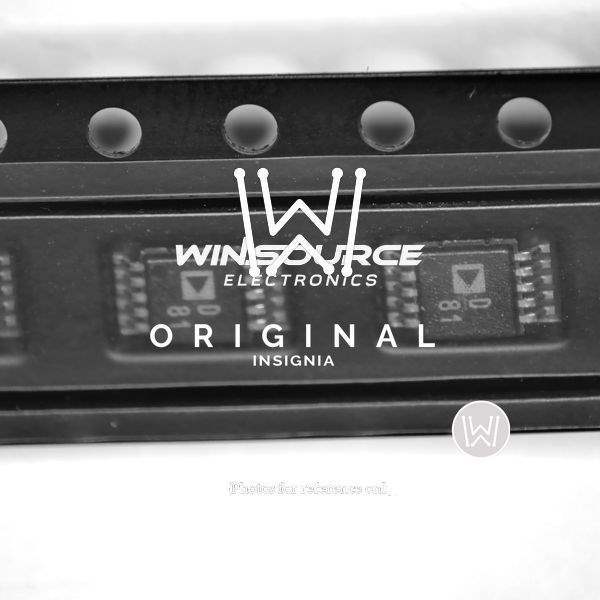

The compact 10-lead MSOP (Mini Small Outline Package) of the AD5643RBRMZ-3 makes it an excellent choice for space-constrained applications. Its small footprint does not compromise its performance, maintaining the high standards expected from Analog Devices Inc. products.

In summary, the AD5643RBRMZ-3 is a powerful and versatile DAC solution that offers precision, low power consumption, and ease of use for engineers and designers looking to incorporate high-quality analog outputs into their digital systems.
