Analog Devices Inc. AD5640BRJZ-2500RL7

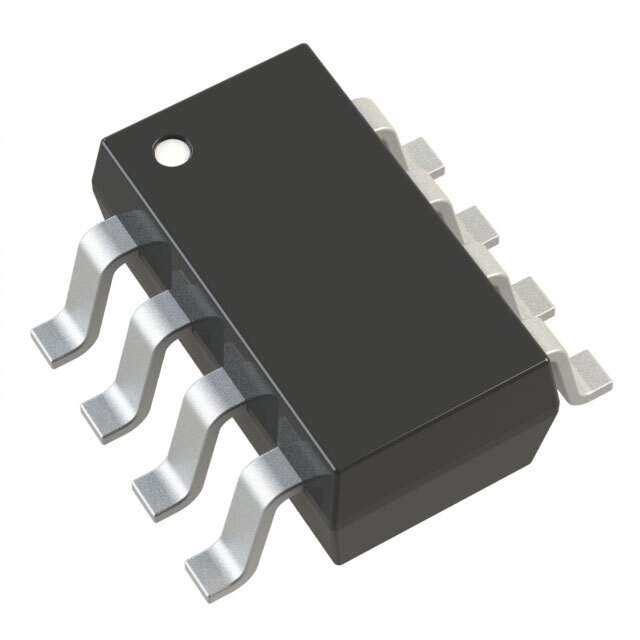

The AD5640BRJZ-2500RL7 is a precision digital-to-analog converter (DAC) product from Analog Devices Inc., designed to provide high accuracy and stability for various applications. This component is part of the nanoDAC series, which are known for their compact size and low power consumption, making them an ideal choice for space-constrained applications.

The AD5640BRJZ-2500RL7 features a 14-bit resolution that ensures fine granularity in the analog output, translating to precise control in the end application. It offers a guaranteed monotonic by design over all codes, which means the output voltage will increase or remain constant with an increase in the digital input code, thereby preventing any unexpected drops in the output voltage that could lead to performance issues in the system it is controlling.

This DAC operates from a single 2.7 V to 5.5 V supply, providing flexibility in various system designs. It has an integrated output buffer amplifier, which enhances the drive capability of the DAC output and allows the DAC to drive capacitive loads directly without any additional buffering. This feature simplifies the design and reduces the need for external components.

The AD5640BRJZ-2500RL7 comes in a compact SOT-23 package, which is suitable for space-saving PCB designs. The device also supports a 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, making it easy to integrate into a range of digital systems. Additionally, the device incorporates a power-down feature that reduces the current consumption to 200 nA at 3 V, further optimizing the power efficiency for battery-powered applications.

With its high precision, compact size, and ease of use, the AD5640BRJZ-2500RL7 is a versatile component that can be utilized in various applications, including portable battery-powered instruments, digital gain and offset adjustment, programmable voltage and current sources, and process control systems. Analog Devices Inc. ensures that this product meets rigorous quality and performance standards, making it a reliable choice for designers and engineers looking to enhance their electronic systems.

For more information and to view detailed specifications, visit the Analog Devices Inc. website or consult the product datasheet.
