The AD5547BRU is a high-performance, dual 16-bit digital-to-analog converter (DAC) designed by Analog Devices Inc., a leader in precision high-performance integrated circuits. This DAC is ideal for industrial control systems, automated test equipment, and high-end audio applications, offering exceptional accuracy and stability.

Key Features:

• Precision: With its 16-bit resolution, the AD5547BRU provides fine granularity, ensuring precise control for a variety of applications.
• Dual DAC Channels: The dual-channel configuration allows for simultaneous output of two independent analog signals, which is beneficial for applications requiring balanced outputs or complex waveform generation.
• Multiplying DAC: This feature makes the AD5547BRU suitable for applications such as gain and offset adjustment, where the DAC output is a product of the reference voltage and digital code.
• Low Glitch Energy: The low glitch impulse energy minimizes the transient effects when switching between output codes, thus reducing noise and improving output signal quality.
• Flexible Reference Inputs: The device supports both unipolar and bipolar reference inputs, giving designers the flexibility to choose the reference configuration that best suits their system requirements.

Performance Specifications:

• Output Range: The AD5547BRU offers a wide output range, which is determined by the external reference voltage applied.
• Settling Time: Fast settling time ensures quick response to digital input changes, which is crucial for high-speed and real-time applications.
• Power Consumption: With its low power consumption, the AD5547BRU is suitable for portable and energy-sensitive applications.

Package and Integration:

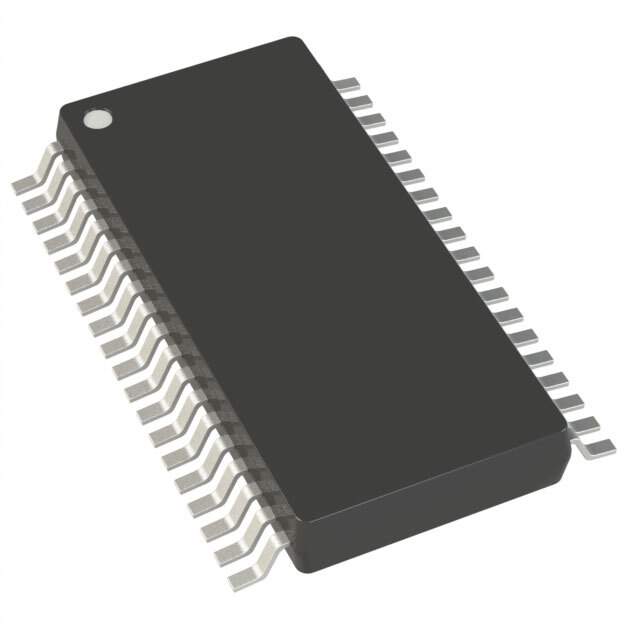

The AD5547BRU comes in a TSSOP (Thin Shrink Small Outline Package) form factor, which is optimized for space-saving on printed circuit boards. Its digital interface is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards, allowing for easy integration into a wide range of systems.

Overall, the AD5547BRU from Analog Devices Inc. is a robust and reliable choice for designers seeking a high-quality, dual-channel DAC solution with industry-leading performance.
