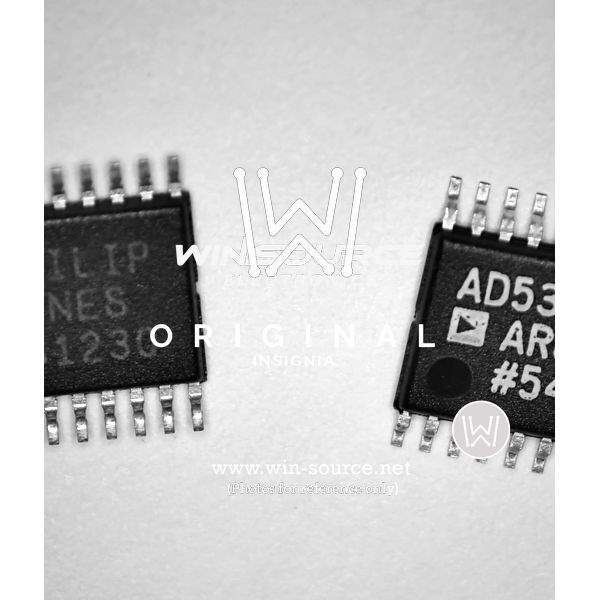

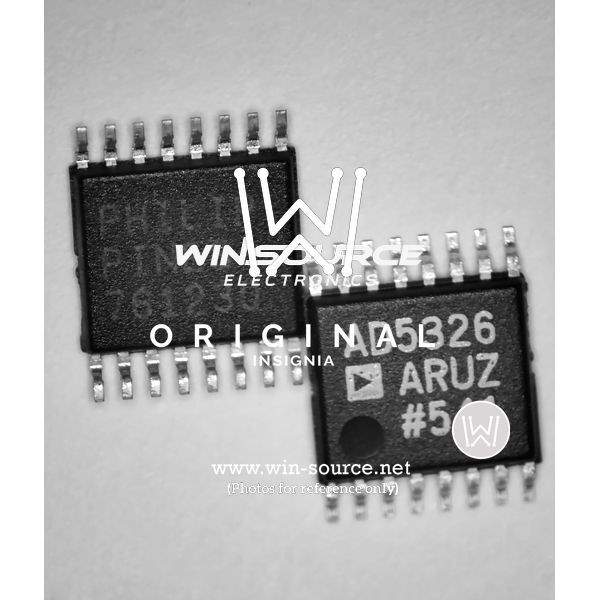

Product Overview: AD5326BRUZ-REEL7

The AD5326BRUZ-REEL7 is a high-performance digital-to-analog converter (DAC) from Analog Devices Inc., a leader in precision high-performance integrated circuits. This particular model is part of the AD5326 series, which is designed to provide accurate and stable digital-to-analog conversion in a compact package. The device is suitable for a wide range of applications, including process control, data acquisition systems, and digital signal processing.

Key Features:

• Resolution: The AD5326BRUZ-REEL7 offers a 12-bit resolution, allowing for fine-grained analog output with a high degree of precision.
• Output Range: This DAC provides a flexible output range that can be configured to either a 2.5 V to 5.5 V range or a 2.7 V to 5.5 V range, accommodating various application needs.
• Package Type: It comes in a TSSOP (Thin Shrink Small Outline Package) form factor, which is ideal for space-constrained applications.
• Supply Voltage: The device operates on a single 2.5 V to 5.5 V supply, making it compatible with a variety of power environments.
• Interface: The AD5326BRUZ-REEL7 features a 3-wire serial interface that is SPI/QSPI/MICROWIRE compatible, ensuring easy integration with most microcontrollers and digital systems.
• Multiple Output Channels: This DAC provides four voltage output channels, enabling multiple signal outputs from a single device.
• On-Chip Output Buffer: The on-chip output buffer amplifiers allow the outputs to swing rail-to-rail, providing maximum dynamic range.
• Power-Down Function: An integrated power-down function reduces power consumption when the DAC is not in active use.

Applications:

The AD5326BRUZ-REEL7 is versatile and can be used in various applications, including:

• Industrial Automation
• Portable Battery-Powered Instruments
• Data Acquisition Systems
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources

With its high resolution, multiple output channels, and compact size, the AD5326BRUZ-REEL7 is an excellent choice for designers who require a reliable and flexible DAC solution for their complex electronic systems.
