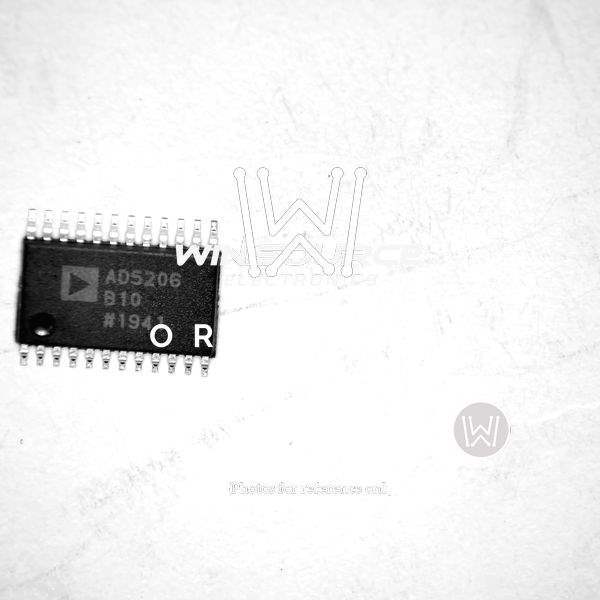

AD5206BRUZ10 Digital Potentiometer by Analog Devices Inc.

The AD5206BRUZ10 is a high-performance digital potentiometer designed and manufactured by Analog Devices Inc., a leader in precision high-performance electronics. This digital potentiometer offers a versatile solution for applications requiring variable resistance adjustments, all controlled via a digital interface. The device is well-suited for applications in the fields of communications, instrumentation, and industrial automation where precision and reliability are paramount.

Key Features

• Multiple Resistors: The AD5206BRUZ10 features six independent variable resistors, providing flexibility for multi-channel applications or fine-tuning several parameters with a single chip.
• Resistance Options: This model offers a resistance value of 10 kΩ per channel, which is ideal for a variety of circuits requiring a mid-range resistance value.
• Resolution: With 256 positions available for each resistor, users can achieve fine-grained control over resistance settings, allowing for precise adjustments.
• Interface: The device supports a user-friendly SPI interface, enabling easy communication with microcontrollers or other digital systems.
• Supply Voltage: It operates with a dual supply voltage of ±2.7V to ±5.5V or a single supply of 2.7V to 5.5V, offering flexibility in various power environments.
• Packaging: The AD5206BRUZ10 comes in a TSSOP (Thin Shrink Small Outline Package), which is suitable for space-constrained applications.
• Nonvolatile Memory: User settings can be stored in nonvolatile memory, ensuring that the resistance settings are maintained even after power-off.

Applications

The AD5206BRUZ10 is versatile enough to be used in a wide range of applications, including:

• Adjustable power supplies
• Programmable filters and delays
• Calibration and control systems
• Audio equipment

With its robust feature set, the AD5206BRUZ10 from Analog Devices Inc. is an excellent choice for designers looking for a reliable digital potentiometer that can deliver precise control over resistance settings in a compact form factor.
