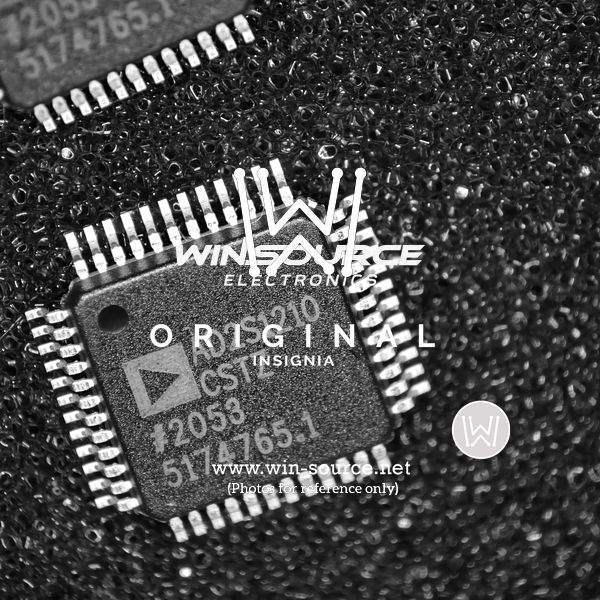

Analog Devices Inc. AD2S1210CSTZ Variable Resolution, 10-Bit to 16-Bit R/D Converter

The AD2S1210CSTZ is a state-of-the-art variable resolution, 10-bit to 16-bit R/D (Resolver to Digital) converter from Analog Devices Inc., designed to provide high-performance solutions for industrial motion control applications. This integrated circuit is capable of converting resolver sensor outputs into digital angle and velocity data. Its robust design ensures reliable operation in harsh environments, making it ideal for use in automotive, automation, and robotics systems.

The AD2S1210CSTZ offers a versatile resolution that can be programmed to match specific application requirements, ranging from 10 bits for low-resolution applications to 16 bits for high-resolution demands. The device features a user-selectable bandwidth that enables designers to optimize the trade-off between dynamic performance and tracking error. This flexibility is essential for tailoring system performance to the needs of various applications, such as electric vehicle powertrains, industrial servo motors, and robotics positioning systems.

Key features of the AD2S1210CSTZ include its fault detection capabilities, which monitor the integrity of the resolver signals, ensuring accurate and reliable data conversion. The device also supports a wide dynamic range, which allows for processing of both large and small signal variations with high accuracy. Additionally, the AD2S1210CSTZ is designed with a continuous tracking converter that eliminates the need for external components, reducing system complexity and cost.

For ease of integration, the AD2S1210CSTZ comes in a compact, 48-lead LQFP (Low Profile Quad Flat Package), which is suitable for space-constrained applications. The device operates over an extended industrial temperature range, ensuring performance stability across various operating conditions.

Overall, the AD2S1210CSTZ from Analog Devices Inc. represents a reliable and flexible solution for converting resolver signals to digital form. With its programmable features and robust design, it is a top choice for engineers seeking to enhance the performance and precision of their motion control systems.
