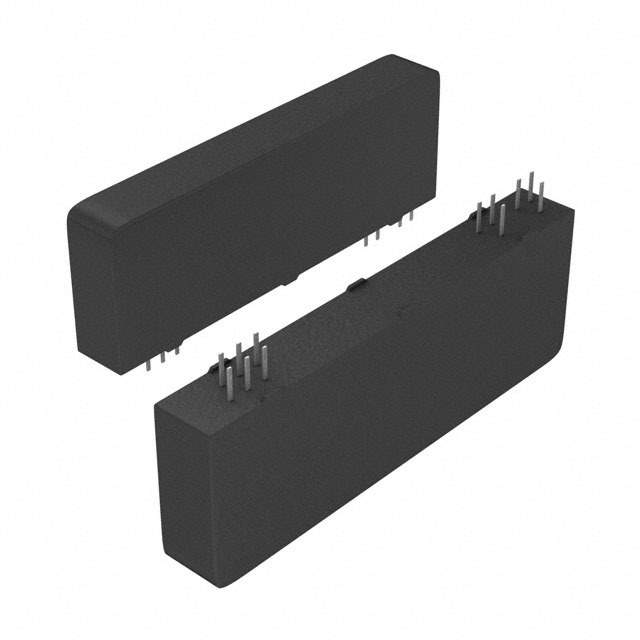

The AD215BY from Analog Devices Inc. is a high-performance signal conditioning amplifier designed to offer superior isolation and amplification for a wide range of industrial and instrumentation applications. This device is particularly well-suited for situations where the signal source is located in an environment with high common-mode voltages, ensuring accurate data acquisition and control.

Key Features:

• High Isolation Voltage: The AD215BY provides an impressive isolation voltage of 1500 V rms, minimizing the risk of ground loops and ensuring the integrity of the signal in electrically noisy environments.
• Wide Bandwidth: With a bandwidth of 120 kHz, this amplifier can handle high-speed signals, making it suitable for dynamic measurement tasks.
• Gain Adjustment: It comes with a user-adjustable gain setting that can be configured via external resistors, allowing for precise calibration to the specific needs of the application.
• Low Nonlinearity: The device features low nonlinearity, with a typical figure of less than ±0.01%, ensuring accurate and reliable signal amplification.
• Flexible Power Supply Options: The AD215BY can operate with dual power supplies ranging from ±15 V to ±18 V, providing flexibility in system design.

Applications:

The AD215BY is ideal for use in a variety of applications, including:

• Industrial process control systems
• Data acquisition systems
• Ground loop elimination
• Motor control feedback circuits
• Strain gauge amplifiers
• Isolated sensor amplifiers

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality and reliability, and the AD215BY is no exception. Manufactured with precision and attention to detail, this signal conditioning amplifier is built to deliver consistent performance even in the most demanding conditions.

With its combination of high isolation, wide bandwidth, and user-configurable gain, the AD215BY is a versatile solution for enhancing signal integrity in complex electronic systems.
