AD-FMCOMMS5-EBZ Evaluation Board

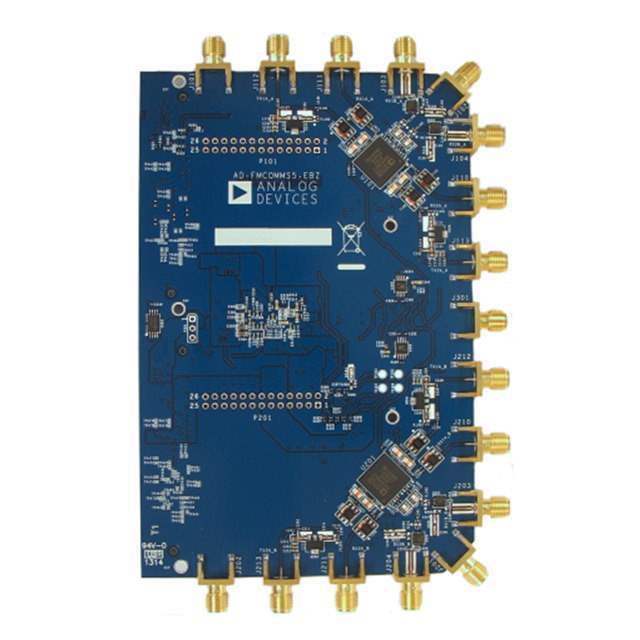

The AD-FMCOMMS5-EBZ from Analog Devices Inc. is a high-performance, radio frequency (RF) agile transceiver evaluation board designed for high-speed data acquisition and signal processing. This advanced module is based on the AD9361 RF Agile Transceiver, which provides a fully integrated 2x2 MIMO transceiver with a tunable range of 70 MHz to 6 GHz. This makes it an ideal solution for a wide range of applications, including wireless communications, test and measurement equipment, and RF-based research.

The evaluation board facilitates the rapid prototyping and testing of complex RF systems. It comes with two AD9361 transceivers, enabling users to implement 4x4 MIMO configurations. The AD-FMCOMMS5-EBZ is compatible with various FPGA development boards, allowing for easy integration with existing digital signal processing platforms. This flexibility enables developers to create and test custom algorithms and applications that require high-throughput and real-time data processing capabilities.

The onboard transceivers support a wide range of signal bandwidths, from less than 200 kHz to 56 MHz, making the board versatile for multiple communication standards. The device also features automatic gain control, quadrature correction, DC offset correction, and digital filtering, which reduce the need for external components and simplify the overall system design.

The AD-FMCOMMS5-EBZ is equipped with a variety of interfaces, including a high-speed serial peripheral interface (SPI) for configuration, parallel digital interfaces for data input and output, and general-purpose input/output (GPIO) ports for additional functionality. The board is also supported by the ADI IIO Oscilloscope, an open-source software tool that provides users with a graphical interface to interact with the hardware for easy setup and data visualization.

With its robust design and comprehensive features, the AD-FMCOMMS5-EBZ stands out as an excellent platform for RF system design and experimentation, offering engineers the tools they need to innovate and excel in the fast-evolving field of wireless technology.
