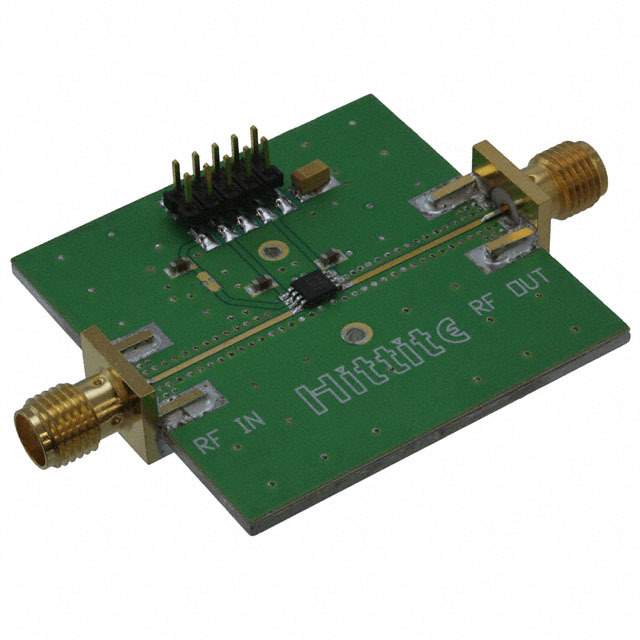

The HMC407MS8G is a highly integrated, high-performance GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC PHEMT amplifier designed and manufactured by Analog Devices Inc. It is housed in an MSOP-8G surface-mount package, making it an ideal choice for compact and space-constrained designs.

Key Features:

• Frequency Range: The amplifier operates over a broad frequency range from DC to 15 GHz, providing versatile applications in various RF and microwave systems.
• Gain: It offers a high gain of 11 dB at 15 GHz, ensuring robust signal amplification for high-frequency applications.
• Output Power: With an output power of +19 dBm at 1 dB compression point, the HMC407MS8G can drive a wide range of RF components without the need for additional amplification stages.
• Power Added Efficiency (PAE): The device boasts a power-added efficiency of 29%, which is indicative of its ability to convert DC power into RF power efficiently.
• Supply Voltage: It operates on a single positive supply voltage of +5V, simplifying the power supply design.
• Package: The MSOP-8G package is not only space-saving but also offers excellent thermal performance, which is critical for maintaining reliability and longevity in high-frequency applications.

Applications:

The HMC407MS8G is suitable for a wide range of applications, including:

• Point-to-point and point-to-multipoint radios
• VSAT
• Test instrumentation
• Military and space
• Wireless infrastructure

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality and reliability. The HMC407MS8G is built to meet the highest industry standards, ensuring performance and durability for professional and mission-critical applications. With its robust design and superior specifications, the HMC407MS8G stands out as a leading choice for designers looking for a high-performance RF amplifier.
