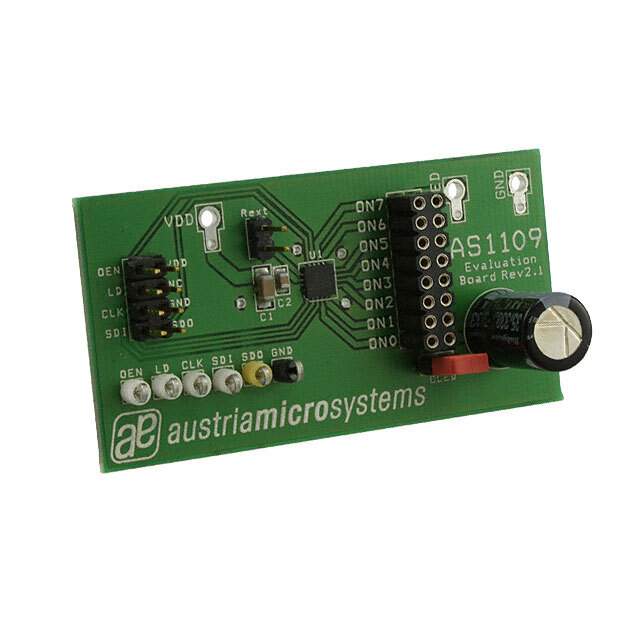

AS1109-QF_EK_ST Real Image
Same model may have multiple batches, images only for reference.

AS1109-QF_EK_ST

Part No AS1109-QF_EK_ST
Manufacturer ams
Catalog Board Mount LED Drivers
Datasheet
AS1109-QF_EK_ST Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr ams
Package Box
Current - Output / Channel 100mA
Outputs and Type 8, Non-Isolated
Voltage - Output 15V
Features Over-Temperature, Open-LED, Shorted-LED, Diagnostics
Voltage - Input 3V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part AS1109
Base Product Number AS1109
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.82.0000
Win Source Part Number 1315926-AS1109-QF_EK_ST
Ultra Librarian 3D Model Ultra Librarian AS1109-QF_EK_ST CAD Model

Description

The 1315926-AS1109-QF_EK_ST is an evaluation board for LED drivers.

  • Manufacturer: ams
  • Features: Over-Temperature, Open-LED, Shorted-LED, and Diagnostics
  • Package: Box
  • Output Voltage: 15V
  • Input Voltage: 3V to 5.5V
  • Output Current Per Channel: 100mA
  • Supplied IC/Part: AS1109
  • Number of Outputs: 8 Non-Isolated
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 9030.82.0000
  • RoHS Status: Non-Compliant
