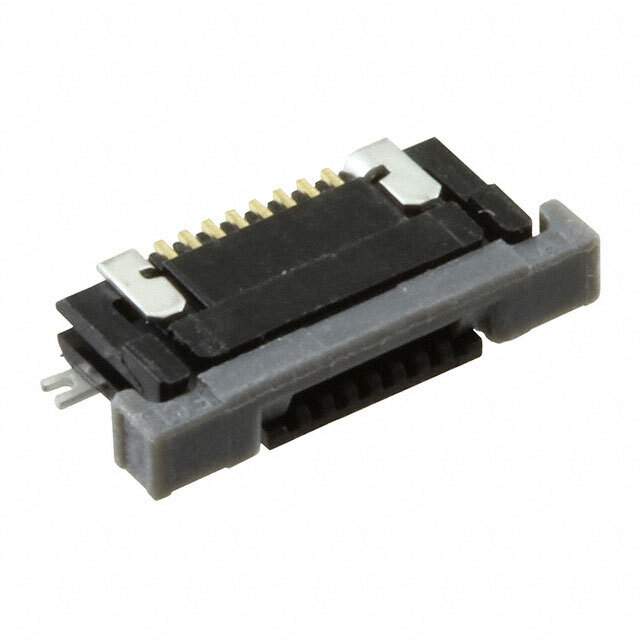

The Amphenol ICC (FCI) 1333370-SFV8R-3STBE1HLF is a flat flexible connector assembly with 8 positions and a pitch of 0.020" (0.50mm).

• Zero Insertion Force (ZIF): Yes
• Termination: Soldered
• Contact Finish: Gold
• Contact Material: Phosphor Bronze
• Voltage Rating: 50V
• Height Above Board: 0.071" (1.80mm)
• Flat Flex Type: FPC
• Connector/Contact Type: Contacts, Bottom
• FFC, FCB Thickness: 0.30mm, 0.33mm
• Locking: Slide Lock
• Housing Material: Polyamide (PA), Nylon, Glass Filled, Halogen Free
• Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
• Material Flammability Rating: UL94 V-0
• Housing Color: Black
• Standard Package: 3,000
• Mounting: Surface Mount, Right Angle
• Mating Cycle: 20
• Temperature Range - Operating: -55°C ~ 105°C
• Actuator Color: Black
• MSL Level: 1 (unlimited)
• REACH: Affected
• HTSUS: 8536.69.4051
• Other Part Numbers: SFV8R-3STBE1HLF-ND,609-5209-6,2266-SFV8R-3STBE1HLF,609-5209-1,609-5209-2
• Base Product Number: SFV8R
• RoHS Compliant: Yes
