Same model may have multiple batches, images only for reference.

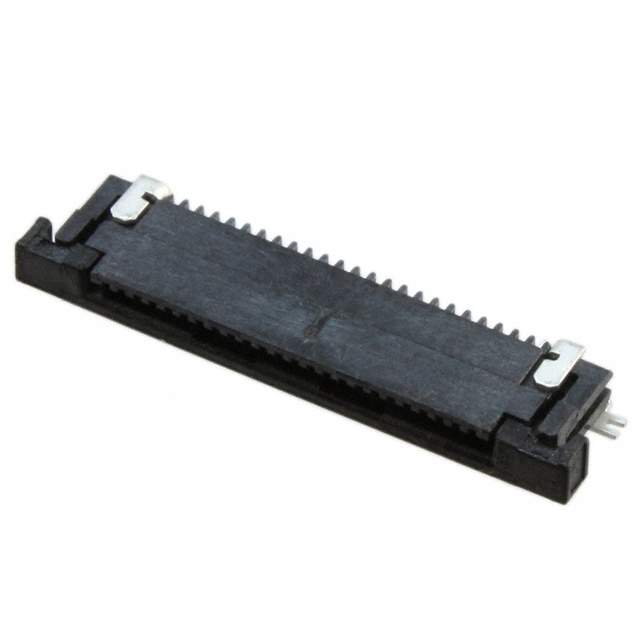

SFV24R-2STE1HLF Real Image
Same model may have multiple batches, images only for reference.

SFV24R-2STE1HLF

Part No SFV24R-2STE1HLF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 24POS 0.50MM R/A / 24 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.071" (1.80mm)
Locking Feature Flip Lock
Cable End Type Notched
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Actuator Color Black
Mating Cycles 20
Base Product Number SFV24R
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 609-4321-1,609-4321-2,SFV24R2STE1HLF,609-4321-6
Standard Package 3,000
Win Source Part Number 1333325-SFV24R-2STE1HLF
Ultra Librarian 3D Model Ultra Librarian SFV24R-2STE1HLF CAD Model

Description

The 1333325-SFV24R-2STE1HLF from Amphenol ICC (FCI) is a 24-position FFC/FPC connector assembly with a pitch of 0.020" (0.50mm).

  • Solder Retention: yes
  • Insertion Force: zero insertion force (ZIF)
  • Voltage Rating: 50V
  • Height Above Board: 0.071" (1.80mm)
  • Housing Material: liquid crystal polymer (LCP), glass filled, halogen-free
  • Mounting Style: surface mount, right-angle
  • Mating Cycle: 20
  • Current Rating: 0.5A
  • Operating Temperature: -55°C to 105°C
  • RoHS Compliance: yes
  • REACH: affected
