Same model may have multiple batches, images only for reference.

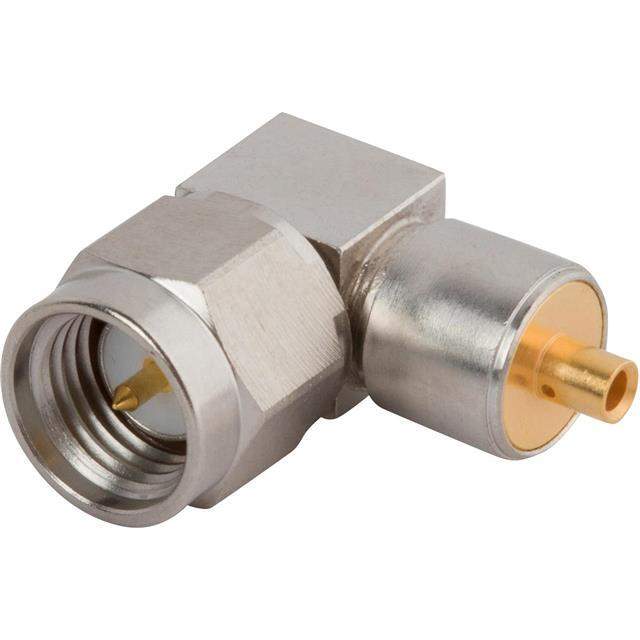

SF2913-6001 Real Image
Same model may have multiple batches, images only for reference.

SF2913-6001

Part No SF2913-6001
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN SMA PLUG R/A 50OHM SOLDER / SMA Connector Plug, Male Pin 50Ohm Free Hanging (In-Line), Right Angle Solder
Datasheet
SF2913-6001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol SV Microwave
Series SMA
Package Tray
Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line), Right Angle
Cable Group RG-174, 316
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 2 pcs - 1 Connector, 1 Heat Shrink
Body Material Stainless Steel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Base Product Number SF2913
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 100
Win Source Part Number 1159707-SF2913-6001
Ultra Librarian 3D Model Ultra Librarian SF2913-6001 CAD Model

Description

The SMA plug male pin connector is an electronic component used for connecting coaxial cables with SMA connectors.

  • Fastening Type: Threaded
  • Frequency Range: Up to 12.4 GHz
  • Impedance: 50 Ohm
  • Body Material: Stainless Steel
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 500
  • Package: Tray
  • Standard Package: 100
  • Cable Groups: RG-174 and 316
  • Contact Termination: Solder
