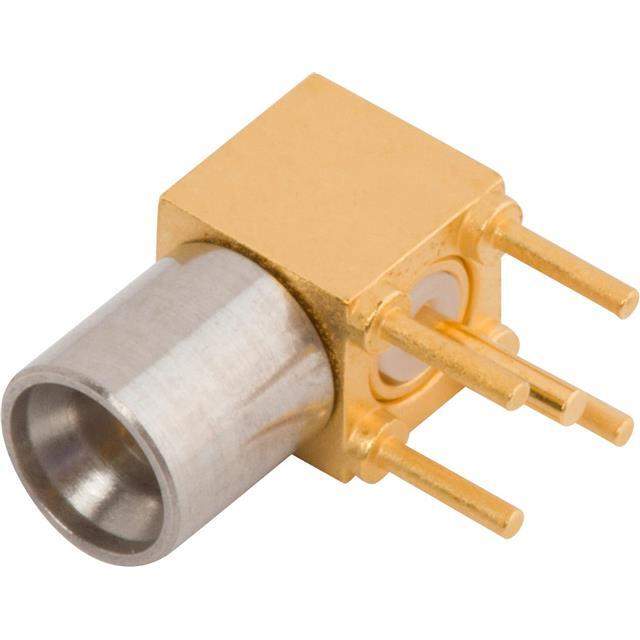

SF1212-6000 Real Image
Same model may have multiple batches, images only for reference.

SF1212-6000

Part No SF1212-6000
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN SMP PLUG R/A 50 OHM PCB / SMP Connector Plug, Male Pin 50Ohm Through Hole, Right Angle Solder
Datasheet
SF1212-6000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol SV Microwave
Series SMP
Package Bag
Connector Style SMP
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Snap-On
Frequency - Max 20 GHz
Number of Ports 1
Features Full Detent
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Beryllium Copper
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Base Product Number SF1212
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 50
Win Source Part Number 1000598-SF1212-6000
Ultra Librarian 3D Model Ultra Librarian SF1212-6000 CAD Model

Description

The Amphenol SV Microwave SF1212 is a 50-ohm SMP plug connector with a through-hole, right-angle mounting style.

  • Manufacturer: Amphenol SV Microwave
  • Connector Type: SMP Plug
  • Impedance: 50 Ohm
  • Mounting Style: Through-Hole, Right-Angle
  • Fastening Type: Full Detent, Snap-On
  • Frequency Range: Up to 20 GHz
  • Housing Color: Gold
  • Body Material: Beryllium Copper
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: PTFE
  • Application: Shielded Coaxial Cable Assemblies
