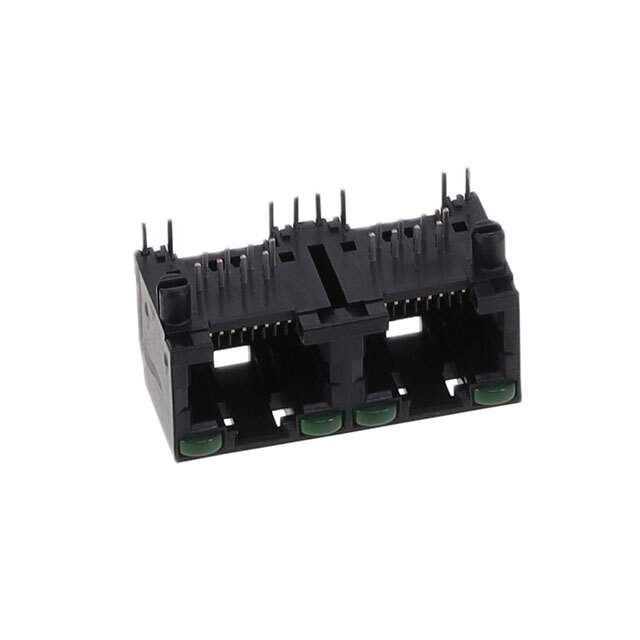

RJHSE-5085-02 Real Image
Same model may have multiple batches, images only for reference.

RJHSE-5085-02

Part No RJHSE-5085-02
Manufacturer Amphenol
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A UNSHLD / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tube
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 2
Number of Rows 1
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Features Board Lock
LED Color Green - Green
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Temperature Range - Operating -55°C ~ 85°C
Base Product Number RJHSE508
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number RJHSE508502
Standard Package 18
Win Source Part Number 1333912-RJHSE-5085-02
Ultra Librarian 3D Model Ultra Librarian RJHSE-5085-02 CAD Model

Description

The Amphenol ICC (Commercial Products) RJHSE-5085-02 is a through-hole modular connector jack with two ports and eight positions/contacts.

  • Orientation: 90° angle (right)
  • Tab Direction: Up
  • Features: Board lock
  • Shielding: Shielded
  • LED Color: Green-green
  • Compliance: RoHS compliant
  • Application: Ethernet applications
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Contact Material: Phosphor bronze
  • Housing Material: Thermoplastic
  • Mounted on: Tube
  • Standard Package: 18
  • Temperature Range: -55°C to 85°C
