Same model may have multiple batches, images only for reference.

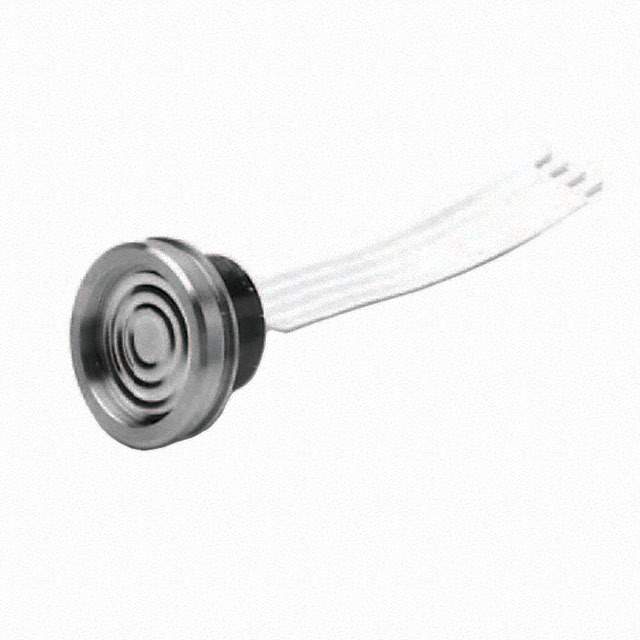

NPI-15A-352SH Real Image
Same model may have multiple batches, images only for reference.

NPI-15A-352SH

Part No NPI-15A-352SH
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 507.6PSI SEALED GAUG / Pressure Sensor 507.63PSI (3500kPa) Sealed Gauge 0 mV ~ 200 mV Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Amphenol NovaSensor
Packaging Bulk
Applications Board Mount
Pressure Type Sealed Gauge
Operating Pressure 507.63PSI (3500kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 200 mV
Accuracy ±0.25%
Port Style No Port
Features Temperature Compensated
Termination Style Flex Cable
Maximum Pressure 1015.26PSI (7000kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package Cylinder
Base Product Number NPI-15A
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 9026.20.4000
Standard Package 1
Win Source Part Number 1336618-NPI-15A-352SH
Ultra Librarian 3D Model Ultra Librarian NPI-15A-352SH CAD Model

Description

The Amphenol NovaSensor pressure sensor is a high-performance sensor that can operate in harsh environments.

  • Temperature Compensation: Yes
  • Pressure Type: Sealed Gauge
  • Operating Pressure: 507.63 PSI
  • Maximum Pressure: 1015.26 PSI
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV to 200 mV
  • Accuracy: ±0.25%
  • Mounting Type: Board Mount
  • Package: Cylinder
  • Termination Style: Flex Cable
  • Port Style: None
  • Temperature Range: -40°C to 125°C
