Same model may have multiple batches, images only for reference.

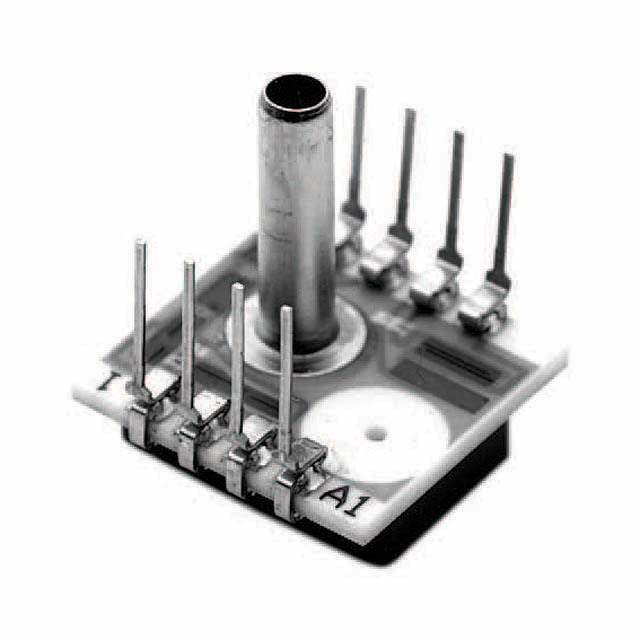

NPC-1220-015A-3-S Real Image
Same model may have multiple batches, images only for reference.

NPC-1220-015A-3-S

Part No NPC-1220-015A-3-S
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSIA 0-50MV DIP / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.12" (3.04mm) Tube 0 mV ~ 50 mV 8-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Amphenol NovaSensor
Packaging Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV
Accuracy ±0.1%
Port Size Male - 0.12" (3.04mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package 8-DIP Module
Base Product Number NPC-1220
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 9026.20.4000
Standard Package 1
Win Source Part Number 1336614-NPC-1220-015A-3-S
Ultra Librarian 3D Model Ultra Librarian NPC-1220-015A-3-S CAD Model

Description

The Amphenol NovaSensor NPC-1220-015A-3-S is an absolute pressure sensor designed for board mount applications.

  • Mounting Type: Board Mount
  • Pressure Range: 15PSI (103.42kPa)
  • Maximum Pressure: 45PSI (310.26kPa)
  • Accuracy: ±0.1%
  • Output: 0mV~50mV
  • Output Type: Wheatstone bridge
  • Temperature Compensation: Yes
  • Port Size: male - 0.12" (3.04mm) tube
  • Port Style: Barbless
  • Package: 8-DIP module
  • Operating Temperature: -40°C to 125°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Termination Style: PC pins
