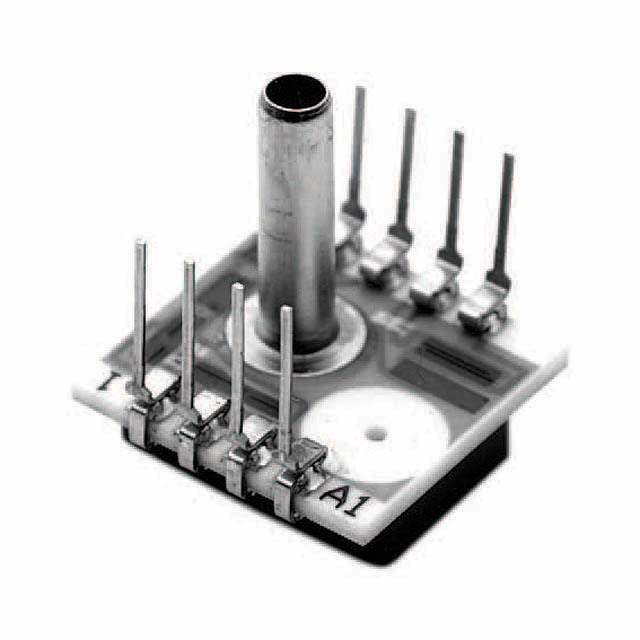

NPC-1220-005G-3-S Real Image
Same model may have multiple batches, images only for reference.

NPC-1220-005G-3-S

Part No NPC-1220-005G-3-S
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 5PSID 0-50MV DIP / Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.12" (3.04mm) Tube 0 mV ~ 50 mV 8-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Amphenol NovaSensor
Packaging Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 5PSI (34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV
Accuracy ±0.1%
Port Size Male - 0.12" (3.04mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 15PSI (103.42kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package 8-DIP Module
Base Product Number NPC-1220
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number NPC-1220-005G-3-S-ND,235-1646,235-1646-ND,45-NPC-1220-005G-3-S
Standard Package 1
Win Source Part Number 1336635-NPC-1220-005G-3-S
Ultra Librarian 3D Model Ultra Librarian NPC-1220-005G-3-S CAD Model

Description

The Amphenol NovaSensor 1336635-NPC-1220-005G-3-S is a pressure sensor with a vented gauge pressure type.

  • Pressure Type: Vented Gauge
  • Output Type: Wheatstone bridge
  • Output: 0 mV ~ 50 mV
  • Accuracy: ±0.1%
  • Operating Pressure: 5PSI (34.47kPa)
  • Maximum Pressure: 15PSI (103.42kPa)
  • Port Size: male - 0.12" (3.04mm) tube
  • Port Style: Barbless
  • Temperature Compensated: Yes
  • Temperature Range: -40°C to 125°C
  • RoHS Compliant: Yes
  • Case/Package: 8-DIP module
