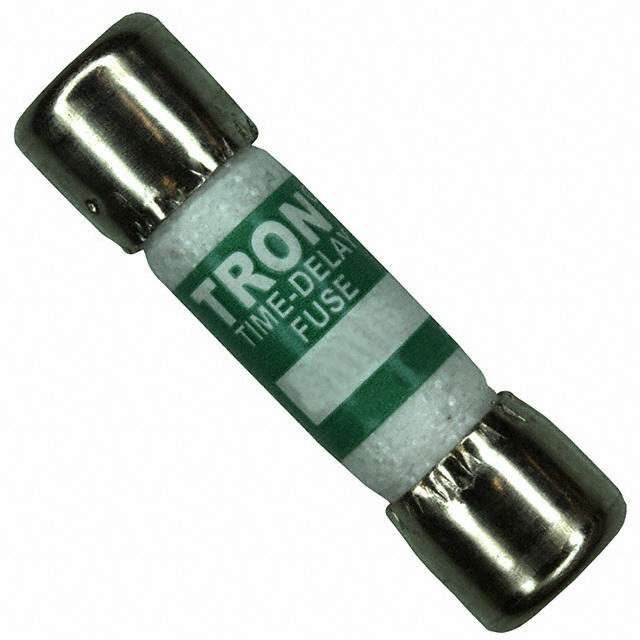

FNQ-25 Real Image
Same model may have multiple batches, images only for reference.

FNQ-25

Part No FNQ-25
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FNQ 13⁄32˝ x 1-1⁄2˝ 500Vac time-delay supplemental fuses | FUSE CARTRIDGE 25A 500VAC 5AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton - Bussmann Electrical Division
Packaging Bulk
Fuse Type Cartridge
Current Rating (Amps) 25A
Voltage Rating - AC 500V
Response Time Slow Blow
Applications Electrical, Industrial
Approvals CE, CSA, UL
Breaking Capacity at Rated Voltage 10kA
Mounting Style Holder
Manufacturer Package 5AG, 10mm x 38.1mm
Parts Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1174929-FNQ-25
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Safety, Metering
Ultra Librarian 3D Model Ultra Librarian FNQ-25 CAD Model

Description

The Eaton - Bussmann Electrical Division 1174929-FNQ-25 is a slow blow cartridge fuse that is designed to protect industrial, power management, safety, and metering applications from overcurrent.

  • Current Rating: 25A
  • Voltage Rating: 500V AC
  • Breaking Capacity: 10kA @ Rated Voltage
  • Dimensions: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
  • Approvals: CE, CSA, UL
  • Manufacturer Pack Quantity: 1
