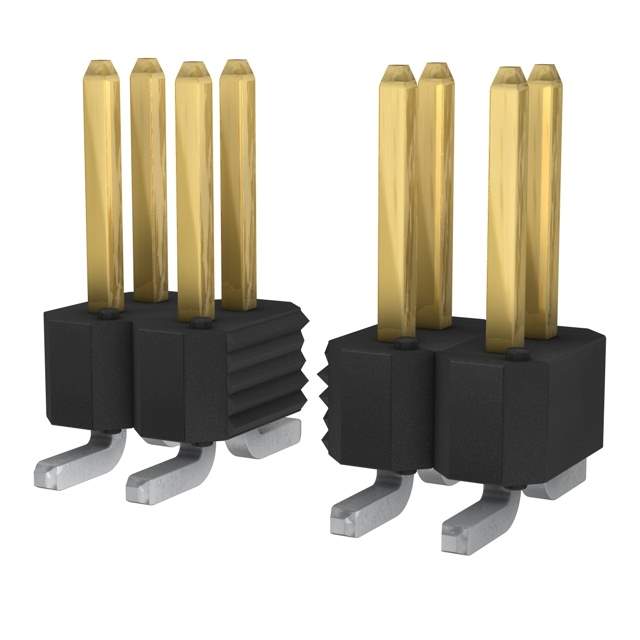

95278-101A26LF Real Image
Same model may have multiple batches, images only for reference.

95278-101A26LF

Part No 95278-101A26LF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 26POS 2.54MM  /  Connector Header Surface Mount 26 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series BERGSTIK®
Package Tape & Reel
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.232" (5.90mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Features Pick and Place
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 95278
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 95278-101A26LF-ND,609-6423-1,609-6423-2,609-6423-6,609-6423,609-6423-ND
Standard Package 300
Win Source Part Number 999897-95278-101A26LF
Ultra Librarian 3D Model Ultra Librarian 95278-101A26LF CAD Model

Description

The BERGSTIK® series of connectors from Amphenol ICC (FCI) is a reliable choice for board-to-board applications.

  • Series: BERGSTIK®
  • Connector Type: Header, Breakaway
  • Fastening: Push-Pull
  • Rows: 2
  • Contacts: 26 Male Pins (All Loaded)
  • Pitch: 0.100" (2.54mm)
  • Current Rating: 3A per contact
  • Contact Material: Phosphor Bronze
  • Insulation Material: Thermoplastic
  • Packaging: Tape & Reel
  • Contact Finish (Mating): Gold, GXT™ (30.0µin or 0.76µm)
  • Contact Finish (Post): Tin (78.7µin or 2.00µm)
  • Temperature Range: -65°C to 125°C
  • ECCN: EAR99
