Same model may have multiple batches, images only for reference.

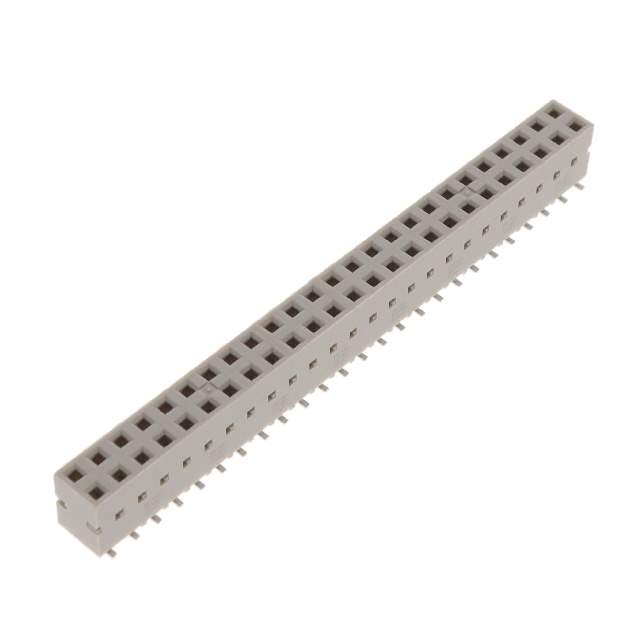

91618-325LF Real Image
Same model may have multiple batches, images only for reference.

91618-325LF

Part No 91618-325LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 50POS 0.1 GOLD SMD / 50 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Datasheet
91618-325LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Tube
Connector Type Receptacle, Bottom or Top Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 50
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Gray
Insulation Height 0.275" (6.99mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 10.81mm
Features Board Lock
Applications Automotive, General Purpose, Industrial, Telecommunications
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 91618
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 91618-325LF-ND,609-91618-325LF
Standard Package 9
Win Source Part Number 1035113-91618-325LF
Ultra Librarian 3D Model Ultra Librarian 91618-325LF CAD Model

Description

The 1035113-91618-325LF is a Dubox™ series connector that is used for board to board connections.

  • Positions: 50
  • Feature: Board Lock
  • Connector Type: Receptacle
  • Entry: Bottom or Top
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Mounting Style: SMD (SMT)
  • Package: Tube
  • Contact Material: Phosphor Bronze
  • Voltage Rating: Not Specified
  • Standard Package: 9
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 30.0µin (0.76µm)
  • Insulation Color: Gray
  • Insulation Height: 0.275" (6.99mm)
  • Applications: Automotive, General Purpose, Industrial, Telecommunications
