Same model may have multiple batches, images only for reference.

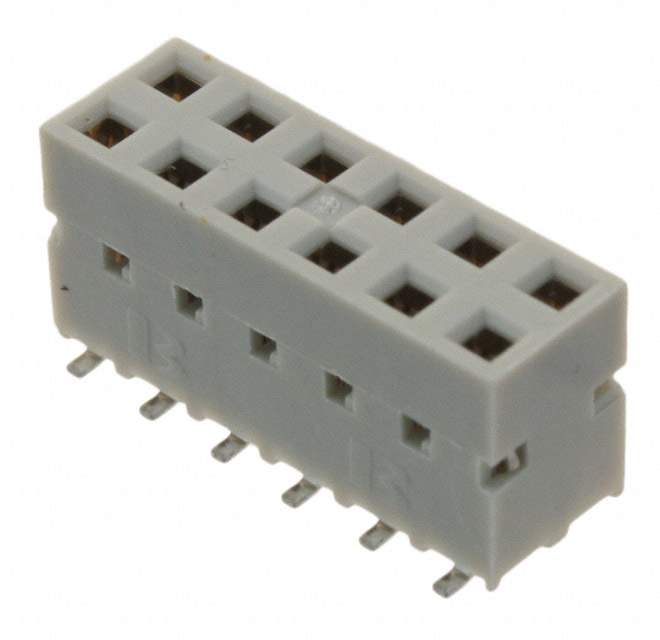

89898-306LF Real Image
Same model may have multiple batches, images only for reference.

89898-306LF

Part No 89898-306LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.1 GOLD SMD / 12 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Box
Connector Type Receptacle, Bottom or Top Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Gray
Insulation Height 0.275" (6.99mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 10.81mm
Applications Automotive, General Purpose, Industrial, Telecommunications
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 89898
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-3042,89898-306LF-ND,89898306LF
Standard Package 38
Win Source Part Number 1020783-89898-306LF
Ultra Librarian 3D Model Ultra Librarian 89898-306LF CAD Model

Description

The Dubox™ series of connectors from Amphenol ICC (FCI) is a range of rectangular connectors that are ideal for use in automotive, general purpose, industrial, and telecommunications applications. Amphenol ICC (FCI) Dubox™ series.

  • Applications: Automotive, General Purpose, Industrial, Telecommunications
  • Configuration: Receptacle, Bottom or Top Entry
  • Fastening Type: Push-Pull
  • Number of Rows: Two
  • Voltage Rating: -
  • Mounting: Surface Mount Technology (SMT)
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 30.0µin (0.76µm)
  • Contact Finish Thickness (Post): 78.7µin (2.00µm)
  • Row Spacing: 0.100" (2.54mm)
  • Mated Stacking Height: 10.81mm
