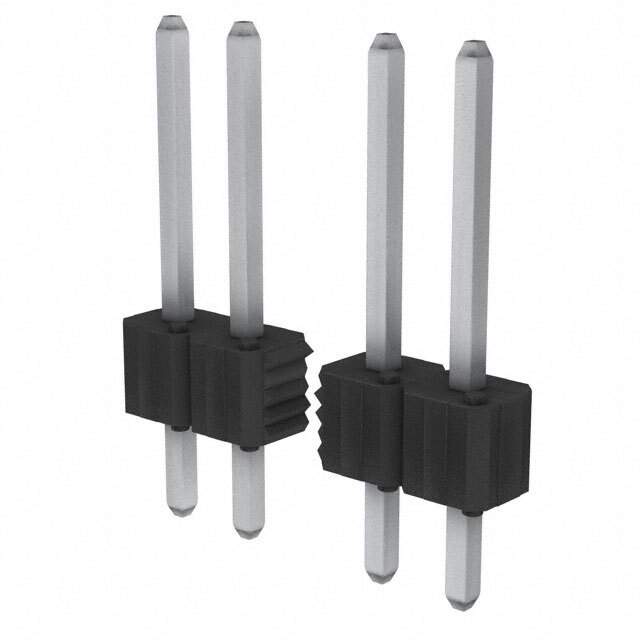

Same model may have multiple batches, images only for reference.

78511-408HLF

Name: 78511-408HLF
Brand: Amphenol
SKU: 991929
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	78511-408HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2.54MM / Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.538" (13.67mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A
Base Product Number	78511
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	100
Win Source Part Number	991929-78511-408HLF
Ultra Librarian 3D Model	Ultra Librarian 78511-408HLF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 991929-78511-408HLF is an 8-pin male header connector designed for use in board-to-board applications.

Series: BERGSTIK II
Pins: 8
Pitch: 0.100” (2.54mm)
Mounting Style: Through-Hole
Contact Material: Phosphor Bronze
Contact Finish: Tin
Current Rating: 5A
Temperature Range: -65°C to 125°C
Flammability Rating: UL94 V-0
Package: Bag
Standard Package Quantity: 100
REACH: Affected
ECCN: EAR99
Applications: Computers, Telecommunications, and Industrial Control Systems
