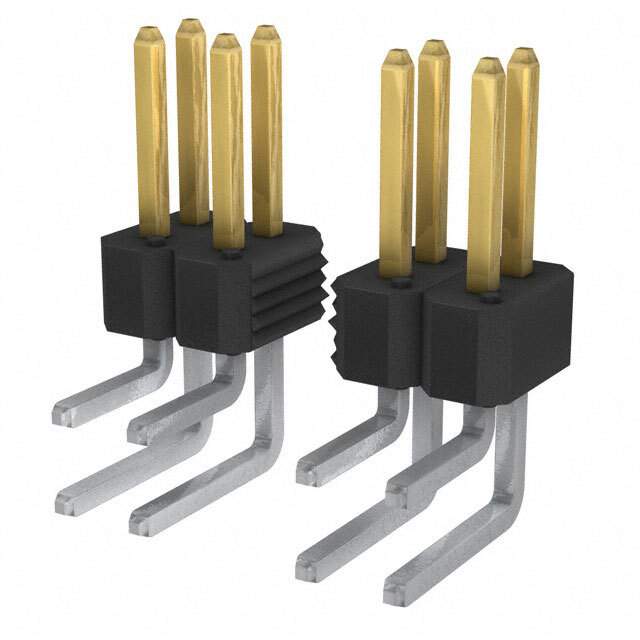

Part No 77317-804-72LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 72POS 2.54MM / Connector Header Through Hole, Right Angle 72 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Amphenol ICC (FCI)
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 72
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 130°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 77317
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-77317-804-72LF,77317-804-72LF-ND
Standard Package 50
Win Source Part Number 1332324-77317-804-72LF
Ultra Librarian 3D Model Ultra Librarian 77317-804-72LF CAD Model

Description

The Amphenol ICC (FCI) 72-position male header connector is a breakaway connector with a push-pull fastening type.

  • Pitch: 0.100" (2.54mm)
  • Mounting: Through Hole and Right Angle
  • Contact Finish - Mating: Gold GXT™ with a thickness of 15.0µin (0.38µm)
  • Contact Finish - Post: Tin with a thickness of 78.7µin (2.00µm)
  • Current Rating: 3A per contact
  • Temperature Range: -65°C ~ 130°C
  • Alternative Part Number: 77317-804-72LF
