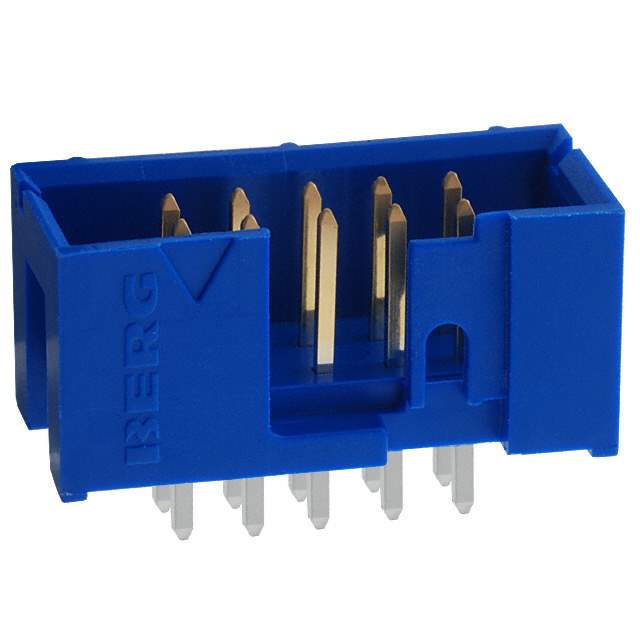

75869-101LF

Name: 75869-101LF
Brand: Amphenol
SKU: 1215063
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	75869-101LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Quickie™
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.377" (9.57mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	75869
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-1774,75869101LF
Standard Package	29
Win Source Part Number	1215063-75869-101LF
Ultra Librarian 3D Model	Ultra Librarian 75869-101LF CAD Model

Description

The 1215063-75869-101LF is a male pin header connector with 10 positions. It is part of the Quickie™ series and comes with a keying slot feature.

Mounting Style: Through Hole
Category: Rectangular Connectors - Headers, Male Pins
Loaded Positions: All
Number of Rows: 2
Termination Type: Solder
Fastening Type: Push-Pull
Package: Tube
Standard Package: 29
Voltage Rating: -
Contact Material: Phosphor Bronze
Insulation Material: Thermoplastic, Glass Filled
Insulation Color: Blue
Contact Finish - Mating: Gold, GXT™
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Finish Thickness - Post: 78.7µin (2.00µm)
ECCN: EAR99
MSL Level: Unlimited
REACH: Affected
Base Product Number: 75869
