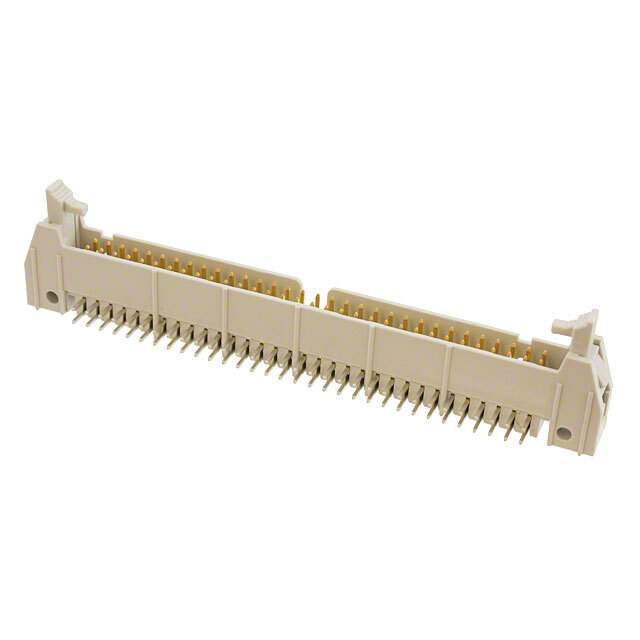

Same model may have multiple batches, images only for reference.

71922-264LF

Name: 71922-264LF
Brand: Amphenol
SKU: 1339854
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	71922-264LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 64POS 2.54MM / Connector Header Through Hole, Right Angle 64 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Quickie™
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	64
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.228" (5.80mm)
Contact Length - Post	0.114" (2.90mm)
Insulation Height	0.339" (8.61mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Features	Keying Slot, Mounting Flange
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	71922
Standard Package	5
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339854-71922-264LF
Ultra Librarian 3D Model	Ultra Librarian 71922-264LF CAD Model

Description

The Amphenol ICC (FCI) 1339854-71922-264LF is a rectangular connector from the Quickie™ series.

Positions: 64
Rows: 2
Shrouding: Shrouded 4-Wall
Connector Type: Header, Male Pins
Termination Style: Solder
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Mounting Type: Through Hole, Right Angle
Operating Temperature: -55°C to 105°C
RoHS3 Compliant: Yes
ECCN: EAR99
