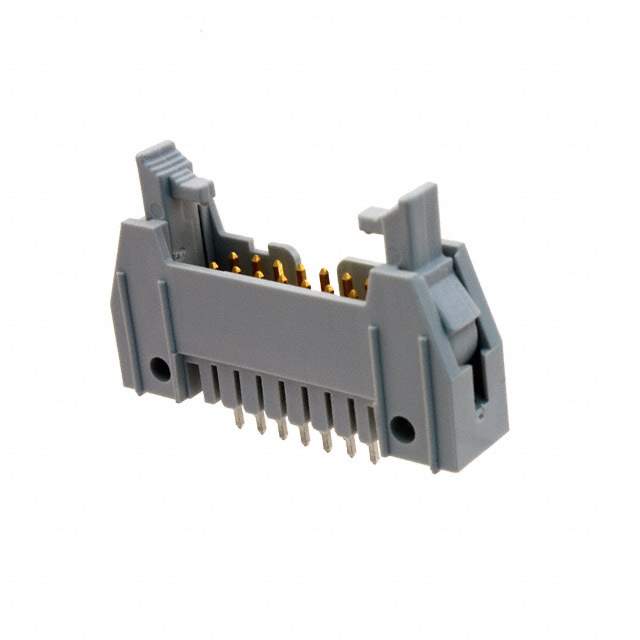

71918-214LF Real Image
Same model may have multiple batches, images only for reference.

71918-214LF

Part No 71918-214LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.685" (17.40mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot, Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Gray
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 71918
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 71918214LF,71918-214LF-ND,609-4495
Standard Package 13
Win Source Part Number 1219863-71918-214LF
Ultra Librarian 3D Model Ultra Librarian 71918-214LF CAD Model

Description

The Quickie series male pin header connector is a rectangular connector that is commonly used in electronic devices.

  • Series: Quickie
  • Feature: Latch Lock/Eject Hooks, Short Fastening Type
  • Mounting Style: Through Hole
  • Contact Material: Phosphor Bronze
  • Voltage Rating: - Volts
  • Contact Shape: Square
  • Operating Temperature: Not Specified
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Contact Finish-Mating: Gold, GXT
  • Contact Finish Thickness-Mating: 30.0µin (0.76µm)
  • Contact Length-Post: 0.114 inches (2.90mm)
  • Insulation Height: 0.685 inches (17.40mm)
  • Contact Length: Not Specified
  • Standard Package: 13
  • Insulation Color: Gray
  • Mounting Type: Through-Hole
  • Shrouded: 4 Walls
