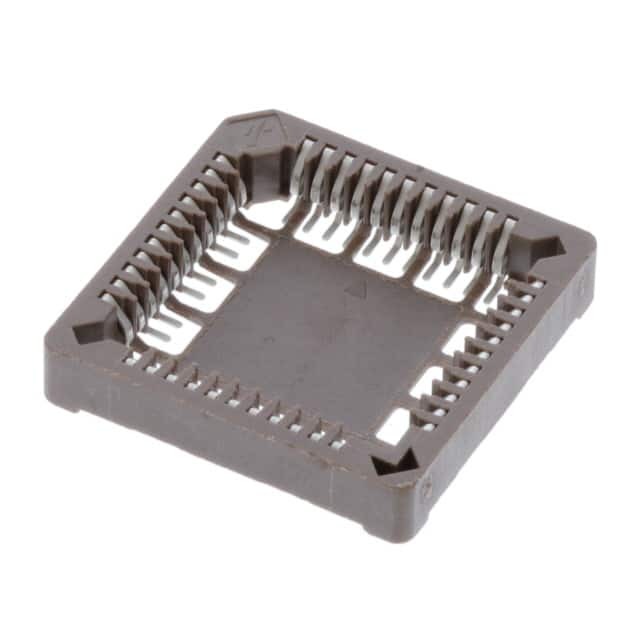

Same model may have multiple batches, images only for reference.
69802-444LF
Same model may have multiple batches, images only for reference.

69802-444LF

Part No 69802-444LF
Manufacturer Amphenol
Catalog Sockets for ICs, Transistors
Description CONN SOCKET PLCC 44POS TINLEAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr Amphenol
Series 69802
Package Tape & Reel
Product Status Active
Type PLCC
Number of Positions or Pins (Grid) 44 (4 x 11)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Surface Mount
Features Open Frame
Termination Solder
Pitch - Post 0.050" (1.27mm)
Contact Finish - Post Tin-Lead
Contact Finish Thickness - Post 150.0µin (3.81µm)
Contact Material - Post Phosphor Bronze
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Termination Post Length 0.060" (1.52mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number 69802
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856976-69802-444LF
Ultra Librarian 3D Model Ultra Librarian 69802-444LF CAD Model

Description

The 856976-69802-444LF is a PLCC IC socket from the 69802 series by Amphenol.

  • Series: 69802
  • Mounting Type: Surface Mount
  • Pitch: 0.050" (1.27mm)
  • Positions: 44
  • Grid Layout: 4 x 11
  • Design: Open Frame
  • Material: Polyphenylene Sulfide (PPS) with Glass Filling
  • Temperature Range: -55°C to 125°C
  • Package: Tape & Reel
  • Pieces per Package: 250
  • Product Status: Active
