Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Omron Electronics Inc-EMC Div
Series XR2
Package Bulk
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 8 (2 x 4)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 29.5µin (0.75µm)
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Open Frame
Termination Wire Wrap
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post 29.5µin (0.75µm)
Contact Material - Post Beryllium Copper
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Termination Post Length 0.510" (12.95mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number XR2A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XR2A-0802-ND,XR2A0802,OR1084
Standard Package 60
Win Source Part Number 1007475-XR2A-0802
Ultra Librarian 3D Model Ultra Librarian XR2A-0802 CAD Model

Description

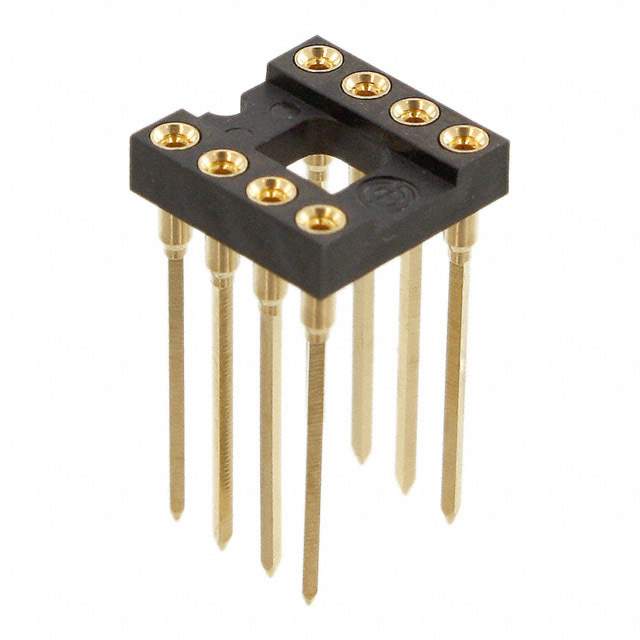

The XR2 series DIP socket from Omron Electronics Inc-EMC Div is a high-quality connector for ICs and transistors.

  • Row Spacing: 0.3" (7.62mm)
  • Design: Open Frame
  • Termination: Wire Wrap
  • Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Flammability Rating: UL94 V-0
  • Positions/Pins: 8 (Grid)
  • Configuration: 2 x 4
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness: 29.5μin (0.75μm)
  • Contact Material-Mating: Beryllium Copper
  • Pitch-Post: 0.100" (2.54mm)
  • Contact Finish-Post: Gold
  • Contact Finish Thickness: 29.5μin (0.75μm)
  • Contact Material-Post: Beryllium Copper
  • Termination Post Length: 0.510" (12.95mm)
  • Contact Resistance: 20mOhm
  • Mounting: Through Hole
  • Operating Temperature: -55°C to 125°C
