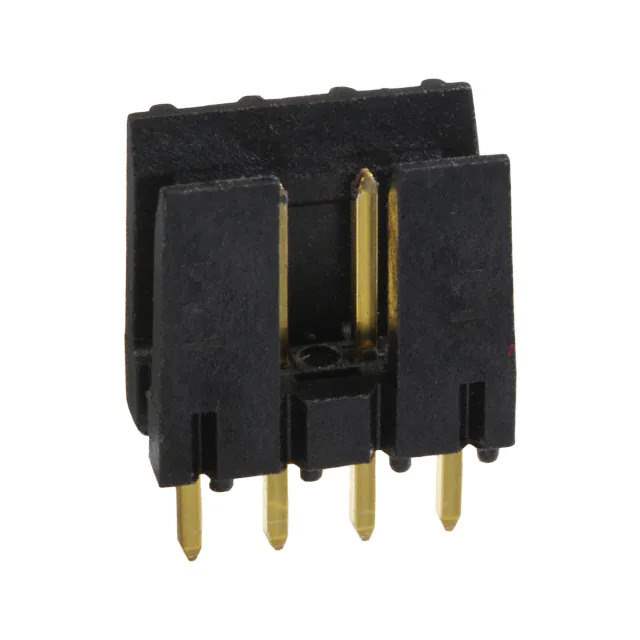

69167-104HLF Real Image
Same model may have multiple batches, images only for reference.

69167-104HLF

Part No 69167-104HLF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol
Series Mini-PV™, Basics+
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.465" (11.81mm)
Insulation Height 0.386" (9.80mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material Phosphor Bronze
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 69167
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 907746-69167-104HLF
Ultra Librarian 3D Model Ultra Librarian 69167-104HLF CAD Model

Description

The 907746-69167-104HLF is a male pin header connector from Amphenol.

  • Series: Mini-PV™, Basics+
  • Positions: 4
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Contact Material: Phosphor Bronze
  • Flammability Rating: UL94 V-0
  • Package Quantity: 1,000 pcs
  • Application: Board to Cable/Wire
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold or Gold, GXT™
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Shrouding: Shrouded - 2 Wall
  • Contact Shape: Square
  • REACH Status: Affected
  • HTSUS Code: 8536.69.4040
  • Product Status: Active
