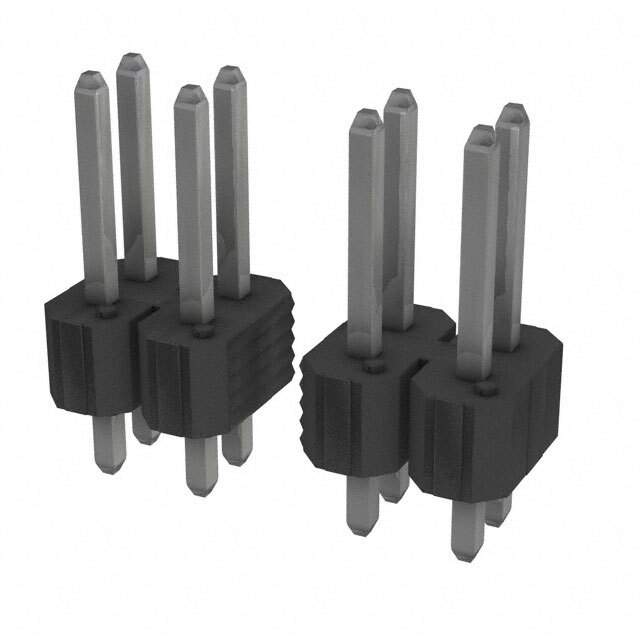

Same model may have multiple batches, images only for reference.

67996-446HLF

Name: 67996-446HLF
Brand: Amphenol
SKU: 1340230
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	67996-446HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 46POS 2.54MM / Connector Header Through Hole 46 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	46
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.425" (10.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Base Product Number	67996
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340230-67996-446HLF
Ultra Librarian 3D Model	Ultra Librarian 67996-446HLF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 1340230-67996-446HLF is a 46-position header connector designed for use in board-to-board applications.

Number of Positions: 46
Pitch: 0.100" (2.54mm)
Contact Type: Male Pin
Contact Material: Phosphor Bronze
Contact Finish: Tin
Mated Stacking Heights: Unshrouded
Mounting Type: Through Hole
Current Rating: 3A per contact
Operating Temperature: -65°C to 125°C
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Length - Mating: 0.230" (5.84mm)
Overall Contact Length: 0.425" (10.80mm)
Packaging: Bag
Material Flammability Rating: UL94 V-0
