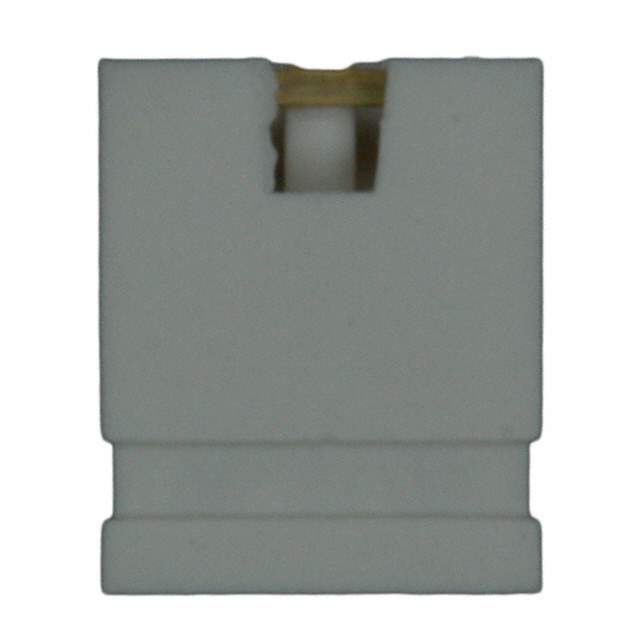

63429-202LF Real Image
Same model may have multiple batches, images only for reference.

63429-202LF

Part No 63429-202LF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN SHUNT SINGLE .100 GOLD / 2 (1 x 2) Position Shunt Connector White Open Top 0.100" (2.54mm) Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Shunts, Jumpers
Mfr Amphenol ICC (FCI)
Series Mini-Jump™
Package Bag
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.236" (6.00mm)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color White
Material Flammability Rating UL94 V-0
Housing Material Polyester, Glass Filled
Current Rating (Amps) 3A
Base Product Number 63429
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 63429202LF,609-2997
Standard Package 2,000
Win Source Part Number 1220576-63429-202LF
Ultra Librarian 3D Model Ultra Librarian 63429-202LF CAD Model

Description

The Mini-Jump™ Open Top connector from Amphenol ICC (FCI) is an ideal solution for shunts and jumpers applications.

  • Pitch: 0.100" (2.54mm)
  • Positions: 2 (1 x 2)
  • Color: White
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Housing Material: Polyester, Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Package: Bag
  • Standard Package: 2,000
  • Voltage Rating: -
  • Current Rating: 3A
  • REACH: Affected
  • HTSUS Code: 8538.90.8180
  • ECCN: EAR99
