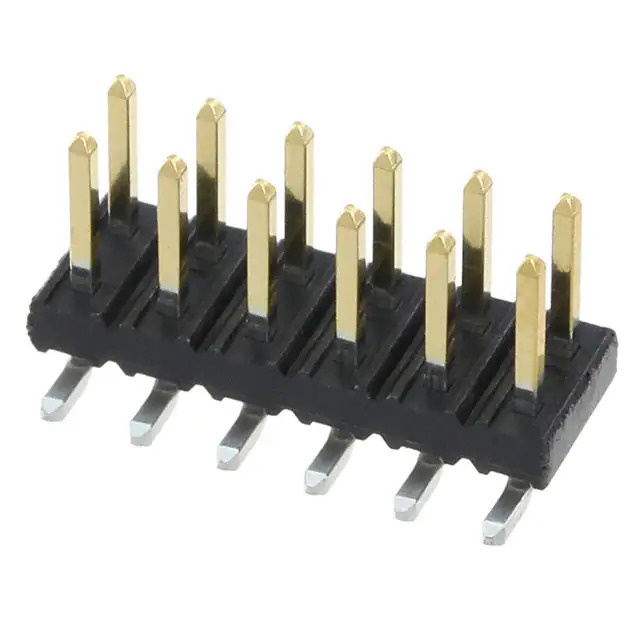

Same model may have multiple batches, images only for reference.

57202-G52-06ALF

Name: 57202-G52-06ALF
Brand: Amphenol
SKU: 1366018
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	57202-G52-06ALF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 12POS 2MM / Connector Header Surface Mount 12 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek® 2.00mm
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	-
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Pick and Place
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A (AC/DC)
Voltage Rating	200V (AC/DC)
Mated Stacking Heights	-
Contact Finish Thickness - Post	78.7µin (2.00µm)
Applications	-
Base Product Number	57202
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366018-57202-G52-06ALF
Ultra Librarian 3D Model	Ultra Librarian 57202-G52-06ALF CAD Model

Description

The Amphenol ICC (FCI) Minitek™ 2.00mm 57202 series is a surface mount board-to-board header connector with a 0.079" (2.00mm) pitch.

Pitch: 0.079" (2.00mm)
Number of Positions: 12
Number of Rows: 2
Shrouding: Unshrouded
Contact Type: Male Pin
Current Rating: 2A (AC/DC)
Contact Finish: Gold, 30.0µin (0.76µm)
Post Contact Finish: Tin, 78.7µin (2.00µm)
Contact Material: Copper Alloy
Insulation Material: Thermoplastic
Insulation Color: Black
Voltage Rating: 200V (AC/DC)
Mounting Type: Surface Mount
