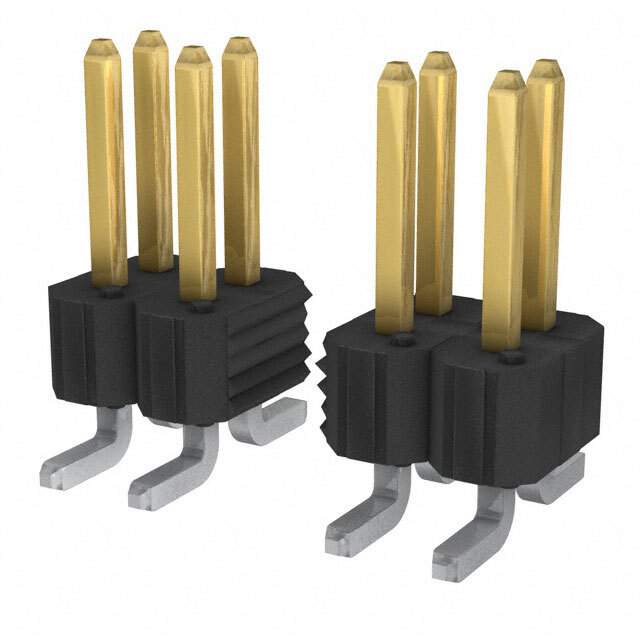

54202-G0805ALF Real Image
Same model may have multiple batches, images only for reference.

54202-G0805ALF

Part No 54202-G0805ALF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 7 Weeks
Features Connector Header Surface Mount 10 position 0.100" (2.54mm)
Manufacturer AMPHENOL
Series BERGSTIK®
Package Reel - TR
Mounting Surface Mount
Family Name 54202
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 54202-G0805ALF-ND, 609-5786-1, 609-5786-2, 609-5786-6
Quantity per package 185
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907357-54202-G0805ALF
Ultra Librarian 3D Model Ultra Librarian 54202-G0805ALF CAD Model

Description

The AMPHENOL BERGSTIK® Connector Header is a high-quality electronic component designed to provide a reliable connection for your electronic devices.

  • Mount: Surface Mount
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Package: Reel-TR
  • Family Name: 54202
  • Supply and Demand: Balanced
  • Package Quantity: 185
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Lead Time: 7 weeks
  • REACH: Affected
  • HTSUS: 8536.69.4040
