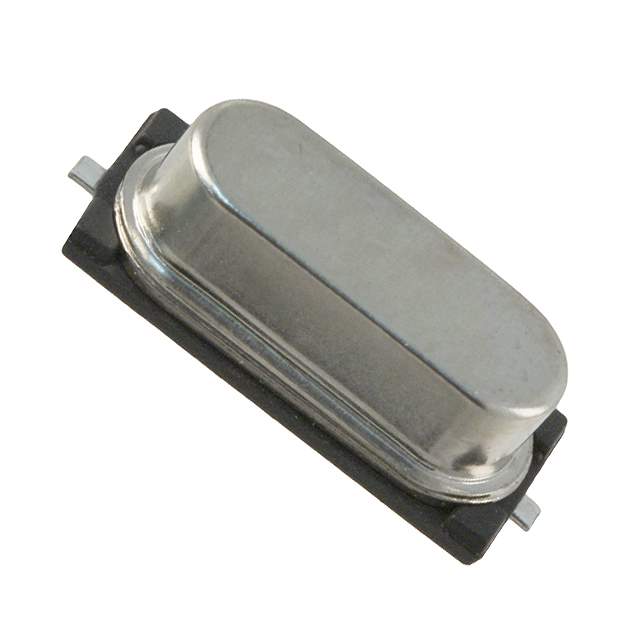

9C04600001 Real Image
Same model may have multiple batches, images only for reference.

9C04600001

Part No 9C04600001
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 4.608MHZ 32PF SMD
Datasheet
9C04600001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 9C
Packaging Reel package
Type MHz Crystal
Frequency 4.608MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 32pF
ESR (Equivalent Series Resistance) 150 Ohm
Operating Temperature Range -20°C ~ 70°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Win Source Part Number 763518-9C04600001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 9C04600001 CAD Model

Description

The TXC CORPORATION 9C series MHz crystal is a reliable and accurate crystal oscillator.

  • Frequency: 4.608MHz
  • Frequency Tolerance: ±20ppm
  • ESR: 150 Ohm
  • Load Capacitance: 32pF
  • Mounting Type: Surface Mount
  • Package: HC49/US
  • Dimension: 0.449" L x 0.189" W (11.40mm x 4.80mm)
  • Height: 0.161" (4.10mm)
  • Operating Temperature Range: -20°C to 70°C
  • Suitable For: Electronic Circuits
