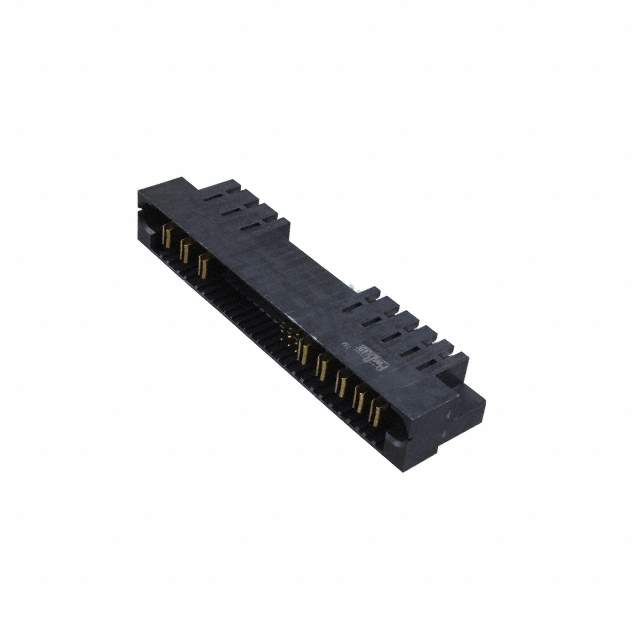

51783-002LF Real Image1 51783-002LF Real Image2
Same model may have multiple batches, images only for reference.
51783-002LF Real Image1 51783-002LF Real Image2
51783-002LF Real Image1 51783-002LF Real Image2
Same model may have multiple batches, images only for reference.

51783-002LF

Part No 51783-002LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HDR BLADE PWR 56POS EDGE MT / 56 Connector Header, Male Pins and Blades Board Edge, Through Hole, Right Angle Black Blade Power
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Mfr Amphenol
Series PwrBlade®
Package Tray
Connector Usage -
Connector Type Header, Male Pins and Blades
Connector Style Blade Power
Number of Positions 56
Number of Positions Loaded 20
Pitch 0.100" (2.54mm)
Number of Rows 4
Number of Columns -
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Contact Layout, Typical 48 Signal, 8 Power
Features Board Lock, Mating Guide
Contact Finish Gold or Gold, GXT™
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Temperature Range - Operating -20°C ~ 105°C
Voltage Rating -
Base Product Number 51783
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 22 pcs
Win Source Part Number 1380895-51783-002LF
Ultra Librarian 3D Model Ultra Librarian 51783-002LF CAD Model

Description

The 1380895-51783-002LF is a specialized backplane connector from the PwrBlade® series manufactured by Amphenol.

  • Series: PwrBlade®
  • Positions: 56
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Feature: Board Lock
  • Mounting Type: Through-Hole, Right Angle
  • Temperature Range: -20°C to 105°C
  • REACH: Affected
