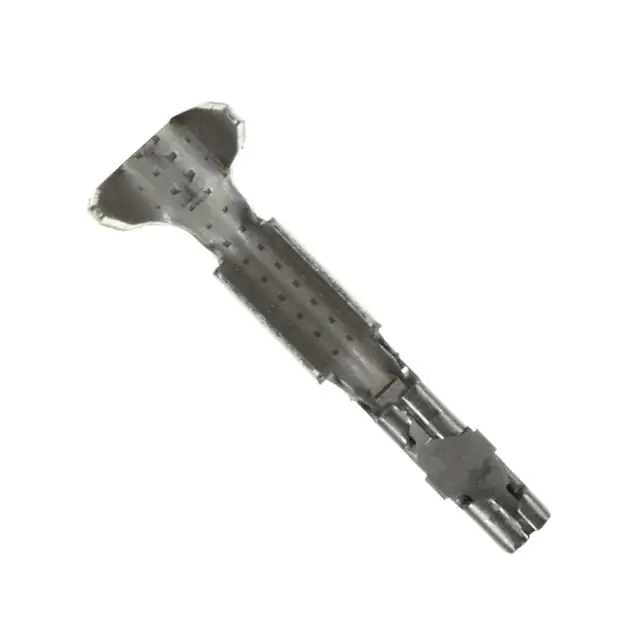

48248-000LF Amphenol
Same model may have multiple batches, images only for reference.

48248-000LF

Part No 48248-000LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN SOCKET 22-26AWG CRIMP GOLD / Socket Contact Gold 22-26 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr Amphenol ICC (FCI)
Series Mini-PV™, Basics+
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 48248
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362970-48248-000LF
Ultra Librarian 3D Model Ultra Librarian 48248-000LF CAD Model

Description

The Amphenol ICC (FCI) Mini-PV™, Basics+ series offers rectangular connector contacts.

  • Contact Type: Socket
  • Termination: Crimp
  • Wire Gauge: 22-26 AWG
  • Contact Finish: Gold
  • Finish Thickness: 15.0µin (0.38µm)
  • REACH Compliant: Yes
  • ECCN: EAR99
