Same model may have multiple batches, images only for reference.

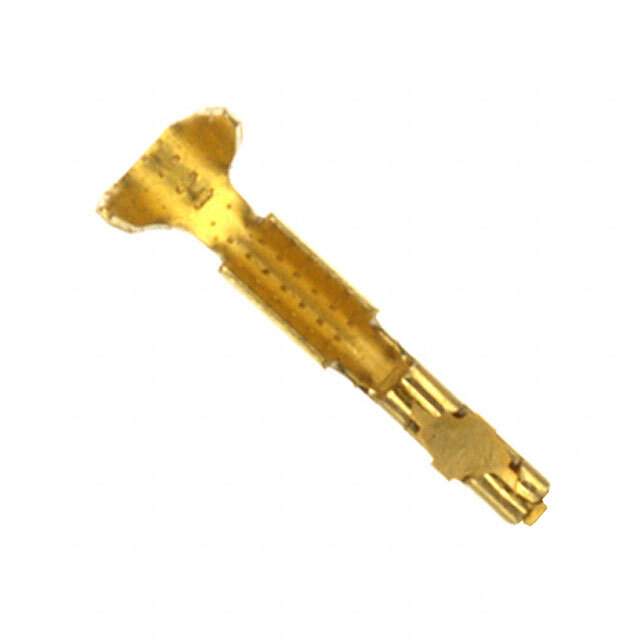

48049-000LF Real Image
Same model may have multiple batches, images only for reference.

48049-000LF

Part No 48049-000LF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN SOCKET 22-26AWG CRIMP GOLD / Socket Contact Gold 22-26 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr Amphenol ICC (FCI)
Series Mini-PV™, Basics+
Package Tape & Reel (TR),Cut Tape (CT)
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 48049
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 48049-000LF-ND,48049000LF,2266-48049-000LFTR,2266-481022-000TR,609-3616-2,609-3616-1
Standard Package 10,000
Win Source Part Number 1121819-48049-000LF
Ultra Librarian 3D Model Ultra Librarian 48049-000LF CAD Model

Description

This rectangular connector contact is part of the Mini-PV™, Basics+ series and is manufactured by Amphenol ICC (FCI).

  • Series: Mini-PV™, Basics+
  • Part Number: 1121819-48049-000LF
  • Packaging: Tape & Reel (TR) or Cut Tape (CT)
  • Wire Gauge: 22-26 AWG
  • Contact Termination: Crimp
  • Pin/Socket: Socket
  • Standard Package: 10,000 connectors
  • Alternative Parts: 48049-000LF
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: REACH unaffected
  • HTSUS: 8536.90.4000
  • Base Product Number: 48049
