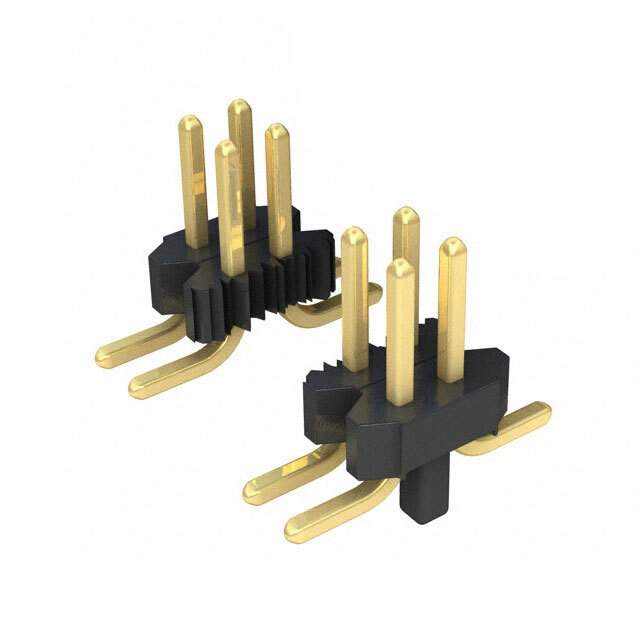

Same model may have multiple batches, images only for reference.

20021121-00014T4LF

Name: 20021121-00014T4LF
Brand: Amphenol
SKU: 1148769
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	20021121-00014T4LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 14POS 1.27MM / Connector Header Surface Mount 14 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek127® 1.27mm
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	20021121
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2002112100014T4LF,2266-20021121-00014T4LF,10122279-314000TLF,609-3730
Standard Package	66
Win Source Part Number	1148769-20021121-00014T4LF
Ultra Librarian 3D Model	Ultra Librarian 20021121-00014T4LF CAD Model

Alternative Products

Description

The Minitek127® 1.27mm Header is a high-quality connector designed for use in a variety of applications and manufactured by Amphenol.

Contact Material: Copper alloy
Voltage Rating: 125VAC
Mounting Type: SMD (SMT)
Fastening Type: Push-pull
Pitch: 0.050" (1.27mm)
Contact Finish: Gold
Ideal For: Board to board applications
RoHS Compliant: Yes
REACH SVHC: No
Current Rating: 1A per contact
