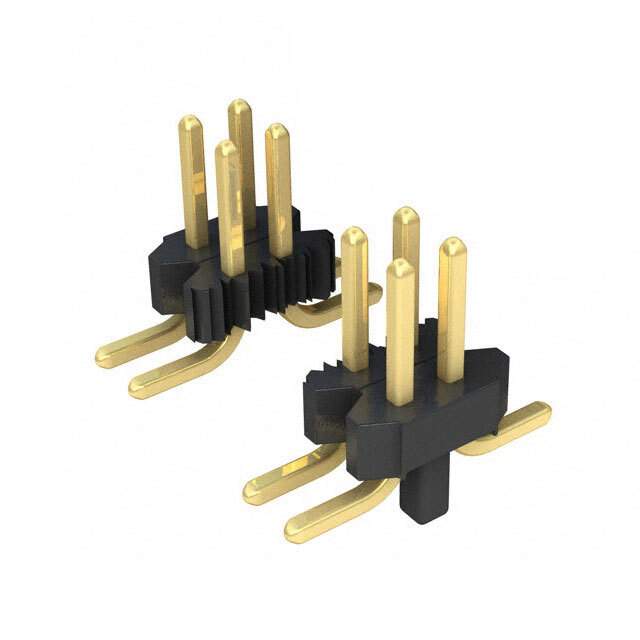

Same model may have multiple batches, images only for reference.

20021121-00014C8LF

Name: 20021121-00014C8LF
Brand: Amphenol
SKU: 1341338
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20021121-00014C8LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 14POS 1.27MM / Connector Header Surface Mount 14 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek127® 1.27mm
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	20021121
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341338-20021121-00014C8LF
Ultra Librarian 3D Model	Ultra Librarian 20021121-00014C8LF CAD Model

Description

The 1341338-20021121-00014C8LF is a 14 positions male pin header connector from Amphenol ICC (FCI).

Pitch: 0.050 inches (1.27 mm)
Mounting Type: surface mount
Contact Finish: gold
Contact Material: copper alloy
Insulation Material: thermoplastic
Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to 125°C
Applications: industrial, automotive, and consumer electronics
