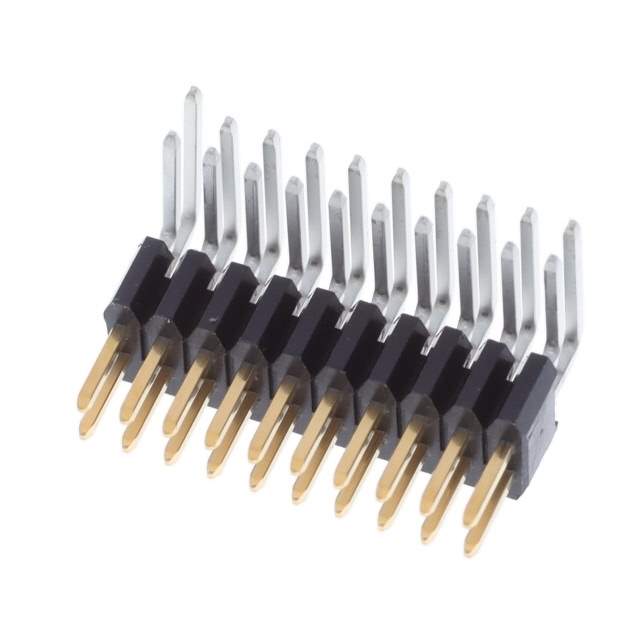

Same model may have multiple batches, images only for reference.

20021112-00020T4LF

Name: 20021112-00020T4LF
Brand: Amphenol
SKU: 1333042
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20021112-00020T4LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 20POS 1.27MM / Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Amphenol ICC (FCI)
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	0.106" (2.69mm)
Insulation Height	0.135" (3.43mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	20021112
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	20021112-00020T4LF-ND,609-5927
Standard Package	46
Win Source Part Number	1333042-20021112-00020T4LF
Ultra Librarian 3D Model	Ultra Librarian 20021112-00020T4LF CAD Model

Description

The Amphenol ICC (FCI) 1333042-20021112-00020T4LF is a header type connector with 20 male pins and a pitch-mating of 0.050" (1.27mm).

Pins: 20 Male
Pitch-Mating: 0.050" (1.27mm)
Number of Rows: 2
Termination: Solder
Style: Board to Board
Fastening Type: Push-Pull
Contact Material: Copper Alloy
Mating Contact Finish: Gold
Mating Contact Finish Thickness: 10.0μin (0.25μm)
Post Finish: Tin
Post Finish Thickness: 50.0μin (1.27μm)
Voltage Rating: 125VAC
Material Flammability Rating: UL94 V-0
Insulation Height: 0.135" (3.43mm)
Insulation Color: Black
Packaging: Tube
Operating Temperature Range: -55°C to 125°C
RoHS Compliant: Yes
Current Rating: 1A per Contact
