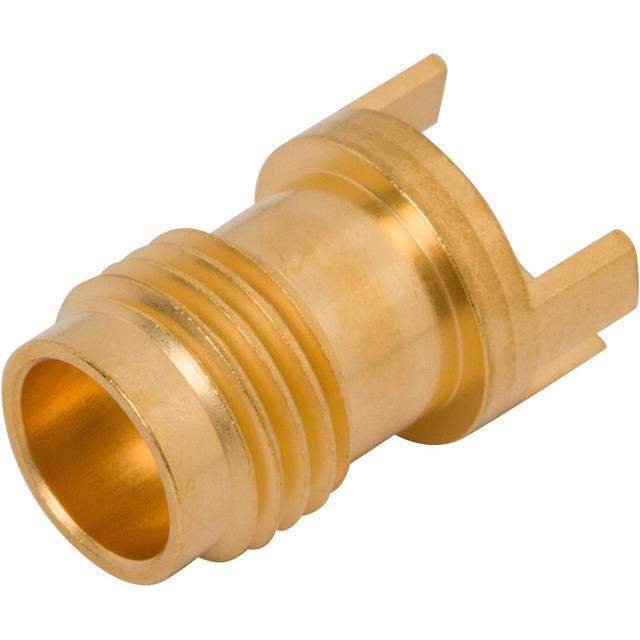

1621-60008 Real Image
Same model may have multiple batches, images only for reference.

1621-60008

Part No 1621-60008
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN 2.4MM JCK STR 50OHM EDGEMNT / 2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
1621-60008 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol SV Microwave
Series 2.4mm
Package Bag
Connector Style 2.4mm (APC-2.4, OS-50)
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 50 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyetherimide (PEI)
Base Product Number 162160
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 25
Win Source Part Number 1034896-1621-60008
Ultra Librarian 3D Model Ultra Librarian 1621-60008 CAD Model

Description

The Amphenol SV Microwave 2.4mm 1034896-1621-60008 connector is a female socket jack with a threaded fastening type and a total of 1 port.

  • Impedance: 50 Ohm
  • Maximum Frequency: 50 GHz
  • Body Material: Stainless Steel
  • Housing Color: Gold
  • Center Contact Plating: Gold
  • Contact Termination: Solder
  • Mounting: Board edge or end launch
  • Package: Bag
  • Application: Coaxial
