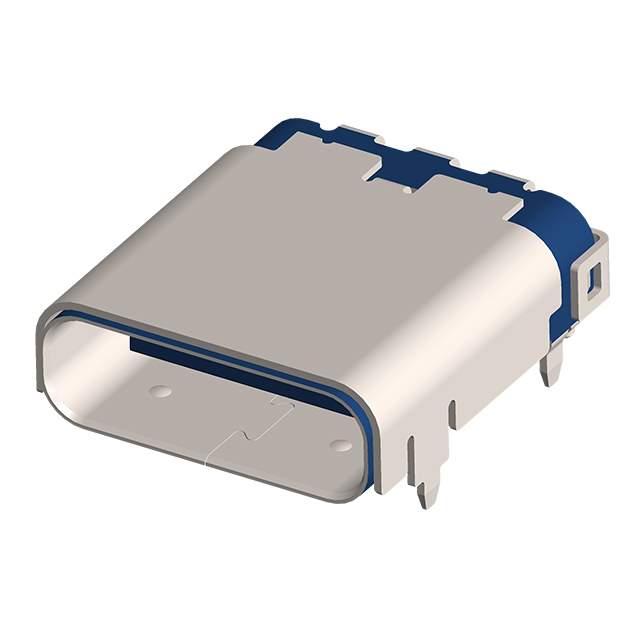

12401832E402A Real Image
Same model may have multiple batches, images only for reference.

12401832E402A

Part No 12401832E402A
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB3.1 TYPEC 24P SMD RA / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Amphenol ICC (Commercial Products)
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Number of Ports 1
Current Rating (Amps) 5A
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 12401832
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 12401722E4#2ACT,12401722E4#2ADKR,12401832E402ADKR,12401722E4#2ADKR-ND,12401722E4#2A,12401722E4#2ACT-ND,12401832E402ACT,12401722E4#2ATR-ND,12401832E402ATR,12401722E4#2ATR
Standard Package 1,000
Win Source Part Number 983255-12401832E402A
Ultra Librarian 3D Model Ultra Librarian 12401832E402A CAD Model

Description

The Amphenol ICC (Commercial Products) 12401832E402A USB-C connector is a high-quality component designed for use in a variety of applications.

  • Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
  • Current Rating: 5A
  • Packaging: Tape and Reel
  • Units per Package: 1,000
  • Contacts: 24
  • Connector Type: Receptacle
  • Mounting Feature: Horizontal
  • ECCN: EAR99
  • Popularity: High
  • MSL: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
