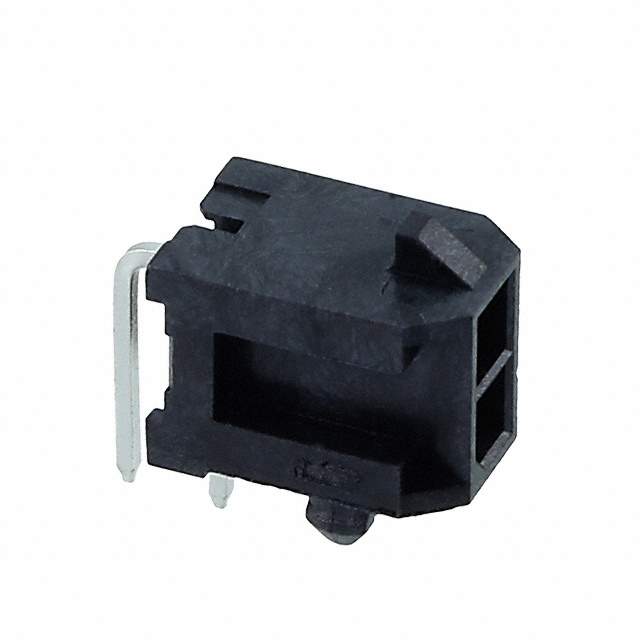

10127720-021LF Real Image
Same model may have multiple batches, images only for reference.

10127720-021LF

Part No 10127720-021LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS / Connector Header Through Hole, Right Angle 2 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Minitek® Pwr 3.0
Package Tray
Connector Type Header
Contact Type Male Pin
Number of Positions 2
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.285" (7.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC/DC
Base Product Number 10127720
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-10127720-021LF,10127720-021LF-ND,609-4880
Standard Package 900
Win Source Part Number 976871-10127720-021LF
Ultra Librarian 3D Model Ultra Librarian 10127720-021LF CAD Model

Description

The AMPHENOL Minitek® Pwr 3.0 series is a 2 position header connector with board lock feature. It is manufactured by Amphenol ICC (FCI).

  • Contact Type: male pin
  • Positions Loaded: all positions loaded
  • Connector Type: header
  • Termination: solder
  • Voltage Rating: 600VAC/DC
  • Insulation Material: liquid crystal polymer (LCP)
  • Package: tray
  • Mounting: through hole, right angle
  • MSL Level: 1 (Unlimited)
  • REACH: REACH affected
  • HTSUS: 8536.69.4040
  • Other part numbers: 2266-10127720-021LF, 10127720-021LF-ND, and 609-4880
