Same model may have multiple batches, images only for reference.

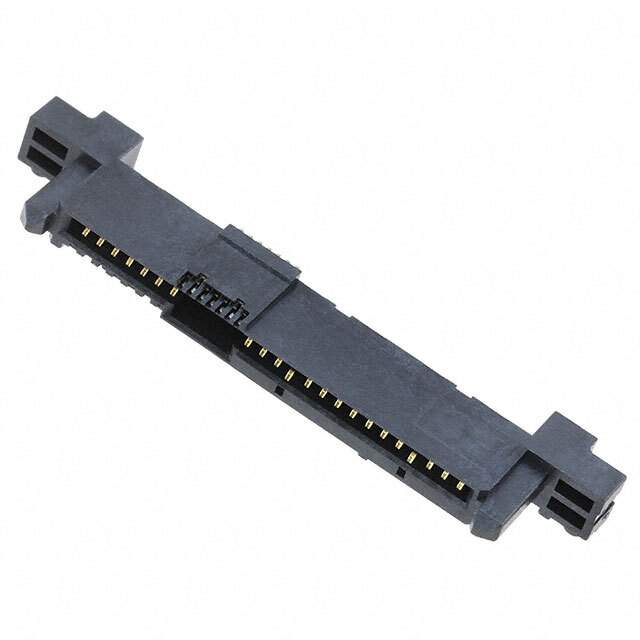

10124274-001TRLF Real Image
Same model may have multiple batches, images only for reference.

10124274-001TRLF

Part No 10124274-001TRLF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SAS RCPT 29POS SLD R/A SMD / 29 Position SAS Receptacle Connector Solder Surface Mount, Right Angle
Datasheet
10124274-001TRLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr Amphenol ICC (FCI)
Package Tape & Reel (TR),Cut Tape (CT)
Connector Style Receptacle
Connector Type SAS
Number of Positions 29
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide, Mating Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10124274
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-4973-2,609-4973-1,609-4973-6INACTIVE,10124274-001TRLF-ND,609-4973-6-ND,609-4973-6
Standard Package 450
Win Source Part Number 1147614-10124274-001TRLF
Ultra Librarian 3D Model Ultra Librarian 10124274-001TRLF CAD Model

Description

The Amphenol ICC (FCI) 10124274-001TRLF is a pluggable connector with 29 positions manufactured by Amphenol ICC (FCI).

  • Connector Type: SAS
  • Connector Style: Receptacle
  • Mounting: Surface Mount, Right Angle
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • RoHS: Compliant
  • REACH: Affected
  • Packaging: Tape and Reel
  • Standard Package: 450
